The pneumatic diaphragm pumps BOXER 251 ALUMINIUM IB251ALD-DID--

Product list

Home
Pumps
Diaphragm Pumps
The pneumatic diaphragm pumps BOXER 251 ALUMINIUM IB251ALD-DID--

The pneumatic diaphragm pumps BOXER 251 ALUMINIUM IB251ALD-DID--

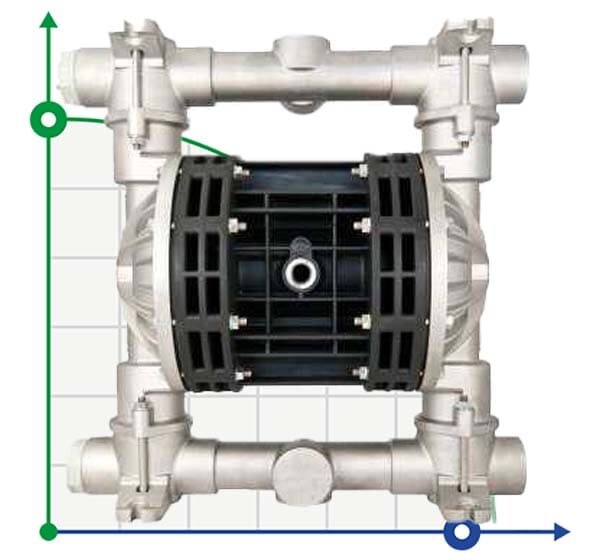

Click image for a larger view

Code: IB251ALD-DID--

(0 review)

Producer	DEBEM
Material	AL
Max. head, m	70
PumpType	membrane pneumatic
Output pipe diameter	1" 1/2
Diaphragm material at air side	EPDM
Input pipe diameter	1" 1/2
Material of flow channel	AL
Material of valve seat	PE-UHMW
Max.temperature, C	95
Max.air pressure, bar	7
Weight, kg	21
Flow rate, l/min	340
Max.diameter of solid inclusions, mm	6
Max.flow rate, m3/h	20.4
Pump capacity, m3/h	20.4
Availability of spare parts	Yes
Serial number of the pump	BOXER
Drive Type	pneumatic
Feed height, m	70
Material of ball valves	EPDM
Max.viscosity, cPs	50 000
Model	BOXER 251
Country of Origin	Italy
Material of O-ring	EPDM
Max.dry suction head, m	6
Pneumatic circuit connection, inch, f	1/2"
Application	ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300

Show all features (29)

Documentation

Description The pneumatic diaphragm pumps BOXER 251 ALUMINIUM IB251ALD-DID--

Pneumatic diaphragm pump BOXER 251 Alu The possibility of the transfer pump BOXER 251 - pump capacity up to 340 l / min; - liquid Samozakachivanie to 6 m; - Work in unconfined mode; - Rapid regulation while maintaining a high pressure; - The possibility of establishing a suspension; - Adjustable blowing and head; - Mnogopatrubnye tube bends; - Can run dry without any problems; - No electrical connections; - Easily replaceable parts; - Easy maintenance; - Version Conduct, ATEX 2 / 2GD c IIB T 135 ° C can be supplied.

Category: Diaphragm Pumps

Features The pneumatic diaphragm pumps BOXER 251 ALUMINIUM IB251ALD-DID--

Producer	DEBEM
Material	AL
Max. head, m	70
PumpType	membrane pneumatic
Output pipe diameter	1" 1/2
Diaphragm material at air side	EPDM
Input pipe diameter	1" 1/2
Material of flow channel	AL
Material of valve seat	PE-UHMW
Max.temperature, C	95
Max.air pressure, bar	7
Weight, kg	21
Flow rate, l/min	340
Max.diameter of solid inclusions, mm	6
Max.flow rate, m3/h	20.4
Pump capacity, m3/h	20.4
Availability of spare parts	Yes
Serial number of the pump	BOXER
Drive Type	pneumatic
Feed height, m	70
Material of ball valves	EPDM
Max.viscosity, cPs	50 000
Model	BOXER 251
Country of Origin	Italy
Material of O-ring	EPDM
Max.dry suction head, m	6
Pneumatic circuit connection, inch, f	1/2"
Application	ethers, ethylene, alkalis, slip, slag, phosphoric acid, phosphates, formalin, acetic acid, phenol, alcohol, reverse osmosis systems, urea, sulfur, peroxide, oleum, saturated amine, varnish, paints, carbonate, kaolin suspension, ash, clays, viscous liquids, hydrogen, butane, ammonia, nitric acid
Analogue for	AGRAL DDE-030, AGRAL DDE-100, DELLMECO DM, DELLMECO DMCX, DEPA DB, DEPA L, Debem SANIBOXER, AquaViva, DUOTEK FOOD, AGRAL DDE-600, AlphaDynamic Ruby, AQUA, Astralpool, Debem BOXER, Debem Foodboxer, Duotek AF Zone 2 Atex, PRODOSE, YAMADA NDP, WILDEN, Sera, Seko, ProMinent, Milwaukee, MILTON ROY, Jesco Pump, Injecta, Grundfos, Graco Husky , FWT, Emec, DEPA M, DOSITEC, DEPA РМ (Р), DUOTEK SANI, AGRAL DDE-60, AGRAL DDE-160, AGRAL DDE-300
