Dosing and control station for swimming pools POOL pH/Cl up to 500m3

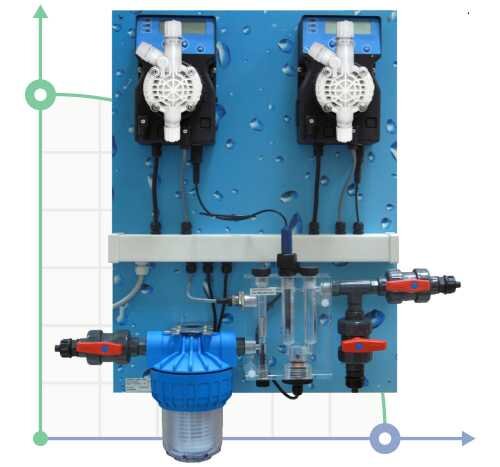

POOL GUARD 3 PH / CL PANEL (SCLO 3 HYCHLOR) is an automatic system for proportional dosing and monitoring of PH and CL levels (concentration of free chlorine in water) for swimming pools with a volume of up to 500 m3. The dosing station is controlled by a liquid flow sensor (included in the kit), if there is no flow, the system goes into standby mode. MAIN ADVANTAGES: interchangeability of metering pumps, simple operation and easily accessible flow-through strapping for maintenance. The POOL GUARD 3 PH/CL PANEL dosing system (SCLO 3 HYCHLOR) is supplied mounted on a chemical-resistant plastic panel (450x600x8 mm), in a complete set, ready for installation and commissioning TECHNICAL SPECIFICATIONS: * The system is based on DLX PH – RX-CL/M metering pumps with integrated pH/Rx/Cl controllers (optional) and a SCLO 3 HYCHLOR free chlorine flow amperometric sensor • Alarm on the time of continuous dosing, followed by switching off the dosing pumps • Dosing delay when the system is switched on • Level sensor or flow sensor alarm • Setting of the alarm system according to the limit concentrations of pH/Cl levels (MIN/MAX) • Dosing modes: constant ON/OFF and proportional PROP • Fine-tuning of the proportional mode • Blocking the settings made by password • Menu Selection: Basic/Full • Setting the hysteresis • Pump capacity: 5 l /h – 7 bar • Measurement ranges: 0-14 pH; 0-5 ppm (mg / L) • Protection class (pumps): IP65 • Support for flow sensor and reagent level sensor CONFIGURATION OF THE DOSING SYSTEM: (SCLO 3 HYCHLOR) - with an amperometric sensor of free chlorine SCLO 3 HYCHLOR (only inorganic chlorine) Composition of the POOL GUARD 3 PH/CL dosing system [SCLO HYCHLOR] 2 pcs.-DLX PH-RX-CL /M 5-7 230V PVDF pump 1 pc. - PH level sensor with 0.5 m cable. 1 pc. - chlorine sensor SCLO 3 HYCHLOR 1 pc. - cable with adapter for SCLO 3 HYCHLOR chlorine sensor 2 pcs. - reagent level sensor with a 2 m cable. 1 pc. - mounting kit for SCLO 3 HYCHLOR chlorine sensor 1 pc. - a set of installation and maintenance instructions 1 pc. - calibration solution PH 7, 55ML 1 pc. - calibration solution PH 9, 55ML 2 pcs. - reagent injection valve 2 pcs. - reagent intake valve 2 pcs. - reagent intake hose, 4x6, PVC, 2 m.p. 2 pcs. - reagent discharge hose, 4x6, PE, 2 m.p. 1 pc. - mounting panel 450x600x8 mm
