GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

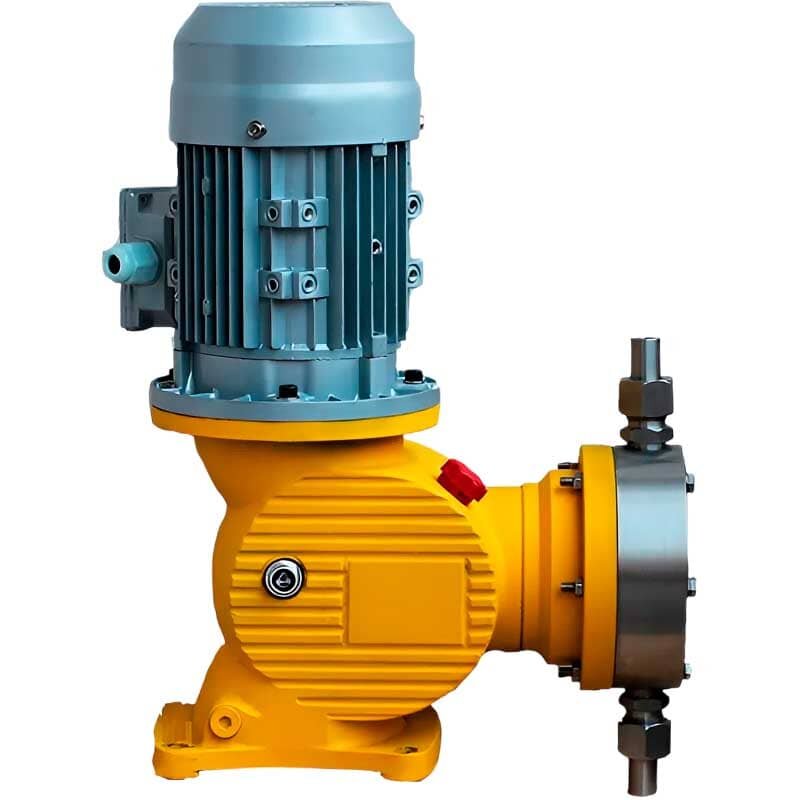

GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

Click image for a larger view

Code: 1023403

(0 review)

Producer	BTS Engineering
Material	AISI 316 stainless steel
PumpType	membrane motor
Explosion protection	Yes
Pump capacity, m3/h	0.76
Serial number of the pump	GB
Drive Type	electric
Country of Origin	China
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Operating temperature	-20°C + 90°C
ATEX standard	EExd IIBT4
Flow rate, l/h	760
Pressure, bar	5
Diaphragm stroke per min.	144
Connection	RC1" F
Diaphragm diameter, mm	148

Show all features (17)

Description GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

The GB series diaphragm metering pumps are robust and reliable motor-driven diaphragm metering pumps. The diaphragm is a five-layer PTFE composite diaphragm with a reinforced back plate. It is a reliable pump with a long service life. Both the stroke length and stroke speed can be adjusted to change the pump performance. It is an ideal pump for pumping and injecting chemicals in water treatment systems.

Category: Motorised Diaphragm Dosing Pumps

Features GB760/0.7, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump

Producer	BTS Engineering
Material	AISI 316 stainless steel
PumpType	membrane motor
Explosion protection	Yes
Pump capacity, m3/h	0.76
Serial number of the pump	GB
Drive Type	electric
Country of Origin	China
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Operating temperature	-20°C + 90°C
ATEX standard	EExd IIBT4
Flow rate, l/h	760
Pressure, bar	5
Diaphragm stroke per min.	144
Connection	RC1" F
Diaphragm diameter, mm	148
