GM500/0.3, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump in explosion-proof design

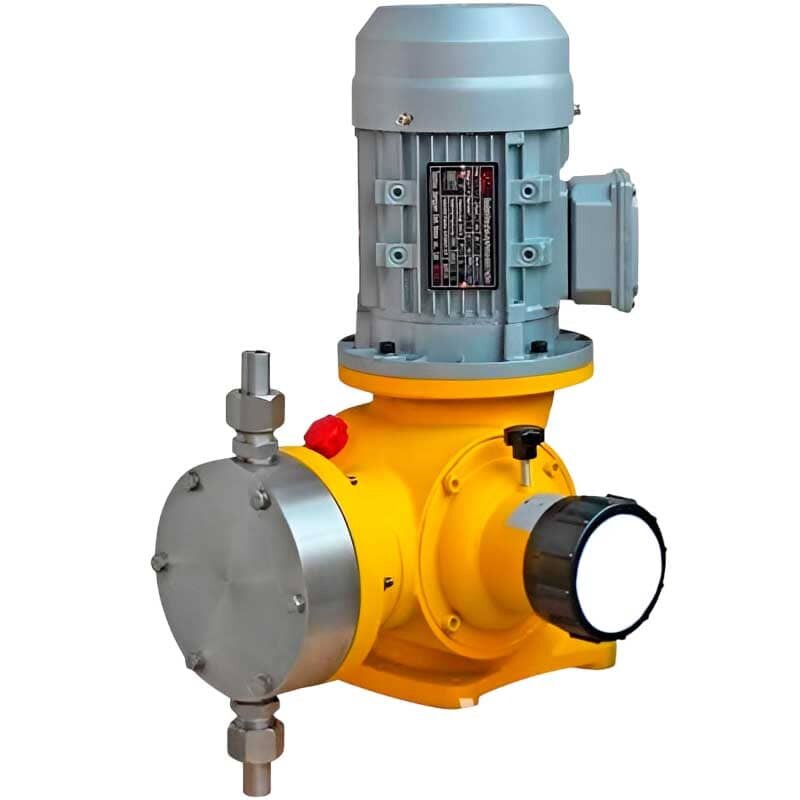

GM500/0.3, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump in explosion-proof design

Click image for a larger view

Code: 1023399

(0 review)

Producer	BTS Engineering
Material	AISI 316 stainless steel
PumpType	membrane motor
Explosion protection	Yes
Pump capacity, m3/h	0.5
Serial number of the pump	GM
Drive Type	electric
Country of Origin	China
Power capacity, kW	0,37
Power supply	3х380 V, 50 Hz
Operating temperature	-20°C + 90°C
ATEX standard	EExd IIBT4
Flow rate, l/h	500
Pressure, bar	5
Diaphragm stroke per min.	144
Connection	DN15
Diaphragm diameter, mm	112

Show all features (17)

Documentation

Description GM500/0.3, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump in explosion-proof design

The GB series diaphragm metering pumps are robust and reliable motor-driven diaphragm metering pumps. The diaphragm is a five-layer PTFE composite diaphragm with a reinforced back plate. It is a reliable pump with a long service life. Both the stroke length and stroke speed can be adjusted to change the pump performance. It is an ideal pump for pumping and injecting chemicals in water treatment systems.

Category: Motorised Diaphragm Dosing Pumps

Features GM500/0.3, AISI 316, 380V, EExd IIBT4 diaphragm motor dosing pump in explosion-proof design

Producer	BTS Engineering
Material	AISI 316 stainless steel
PumpType	membrane motor
Explosion protection	Yes
Pump capacity, m3/h	0.5
Serial number of the pump	GM
Drive Type	electric
Country of Origin	China
Power capacity, kW	0,37
Power supply	3х380 V, 50 Hz
Operating temperature	-20°C + 90°C
ATEX standard	EExd IIBT4
Flow rate, l/h	500
Pressure, bar	5
Diaphragm stroke per min.	144
Connection	DN15
Diaphragm diameter, mm	112
