Peristaltic pump MP-1140-25

Product list

Home
Pumps
Dosing Equipment, Diaphragm, Plunger, Peristaltic Pumps
Peristaltic Dosing Pumps
Peristaltic pump MP-1140-25

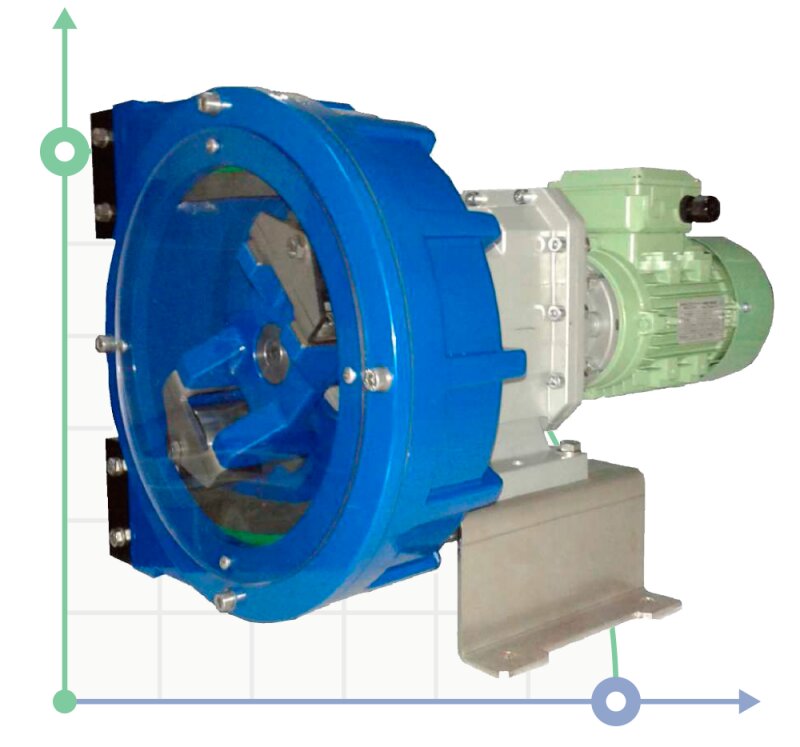

Click image for a larger view

Code: mp1140-25

(0 review)

Producer	DEBEM
Max. head, m	80
PumpType	peristaltic
Output pipe diameter	1" 1/4
Input pipe diameter	1" 1/4
Max.temperature, C	80
Weight, kg	50
Availability of spare parts	yes
Serial number of the pump	MP
Drive Type	electric
Feed height, m	80
Model	MP-11
Country of Origin	Italy
Power capacity, kW	0,55
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	40
Flow rate, l/h	868
Pressure, bar	8
Hose standard size	25x43,50
Product regulation 0-100%	No
Material for working hoos	Norprene
Dosage mode: Continually ON-OFF	So
Mode of operation	Continuous operation
Max.dry suction head, m	8
Application	acid, misalignment, coagulant, liquid powders, antisepsis, chemistry, alkalis

Show all features (26)

Description Peristaltic pump MP-1140-25

MP Peristaltic pumps for supplying high-viscous mixtures of reactive and neutral liquids. Peristaltic pumps with constant capacity. - Maximum suction height: about 8 meters. - Reinforced rubber hose NORPRENE - NBR - EPDM. - Maximum temperature: 80 ° C. - These pumps can pump viscous liquids with suspended particles, while not damaging the pumps. - Reverse the fluid motion and the effect of "siphon" excluded. - Can the operation of the pump "dry", and changing the direction of rotation. - Power 0,55 kW. - Pressure: 8 bar.

Category: Peristaltic Dosing Pumps

Features Peristaltic pump MP-1140-25

Producer	DEBEM
Max. head, m	80
PumpType	peristaltic
Output pipe diameter	1" 1/4
Input pipe diameter	1" 1/4
Max.temperature, C	80
Weight, kg	50
Availability of spare parts	yes
Serial number of the pump	MP
Drive Type	electric
Feed height, m	80
Model	MP-11
Country of Origin	Italy
Power capacity, kW	0,55
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	40
Flow rate, l/h	868
Pressure, bar	8
Hose standard size	25x43,50
Product regulation 0-100%	No
Material for working hoos	Norprene
Dosage mode: Continually ON-OFF	So
Mode of operation	Continuous operation
Max.dry suction head, m	8
Application	acid, misalignment, coagulant, liquid powders, antisepsis, chemistry, alkalis
