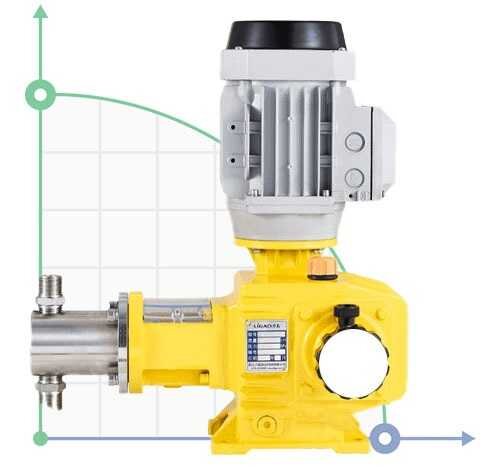

BSX 70/2.0 AISI 316 plunger metering pump

BSX series are plunger/piston type positive displacement, reciprocating metering pump with high performance and accuracy dosing features. The plunger makes harmonic push and pull motion by the crankshaft. It is widely used in industries such as oil and gas, chemical or petrochemical, foaming, electricity, boiler, etc. Features: Flow rate can be adjusted via unique adjusting mechanism from 0-100% The adjustment can be carried when pump is in operation or at stop The steady accuracy is ±1% from 30%-100% of the maximum output Automatic operation is achieved by variable speed drive Special application for high temperature or low temperature is available with cooling jacket or heating jacket Materials: Pump head: AISI304, AISI316 Pump case: Cast Iron Plunger: Ceramic or AISI316 coated with ceramic Packing seal: PTFE and AISI316 Ring Valves: AISI304, AISI316 Valve Ball: AISI304, AISI316, Ceramic EX-proof motor is available on request.
