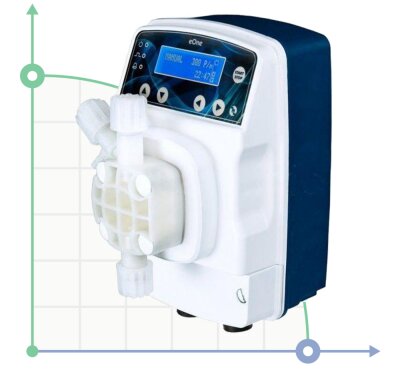

Dosing pump PDE eONE PLUS 10-12 100/250V

Click image for a larger view

Code: PEU463954I

Producer	ETATRON D.S.
Material	PVDF
PumpType	dosing solenoid
Weight, kg	3,5
Availability of spare parts	yes
Serial number of the pump	eONE
Drive Type	electric
Model	PLUS
Country of Origin	Italy
Power supply	1х220 V, 50 Hz
Flow rate, l/h	10
Power capacity, Wt	10/32 Вт 1,8А
Pressure, bar	12
Product regulation 0-100%	So
Pump body material	PVDF
Control	Microprocessing
Number of pulses	300
Dosage mode: Continually ON-OFF	So
Dosage mode: proportional PROP	So
Input for level sensor reagent	So
Input 4-20 mA	So
Pulse input(From Flowmetwer)	So
Input foe sensor PH	So
Input for sensor RX	So
Input foe sensor	So
Input for sensor CD	No
Input foe temperature sensor	So
Input mA	So
Output service relay	So
Support for flow sensor	So
Impulse volume	0,5600000000000001
Application	гипохлорит, каустика, альгицид, of hydrochloric acid, coagulant, acid, alkalis
Analogue for	ASeko, Descon trol S, AquaViva, Seko, Injecta, FWT, Emec

Show all features (33)

Description Dosing pump PDE eONE PLUS 10-12 100/250V

Digital multi-function proportional dosing pump with integrated pH/RedOx/Cl/ppm controller. Backlit liquid crystal display. The maximum pulse frequency is 300 imp/min. A procedure for calibrating a specific pulse for specific needs. Dosage regimens: - Manual ON/OFF - Proportional PROP. Plus all the main modes and functions of the eONE-MF pump (see the description above). Measuring range: 0-14 pH; -1000+1400 mV (RedOx); 0-2, 0-20, 0-200 mg/l (chlorine), 0-2, 0-20, 0-200 ppm (parts per millionth). Setting the pump start-up delay time. Manual (25 ° C by default) or automatic temperature compensation (when connecting the PT100 temperature sensor). MAX alarm system. reagent concentrations. Alarm system MIN. reagent concentrations. Continuous dosing time alarm. The output is 4-20 mA. ON/OFF relay output for alarm system. Support for output flow and level sensors (sensors are not included). Power consumption-26 W (varies depending on

Category: Solenoid Dosing Pumps
