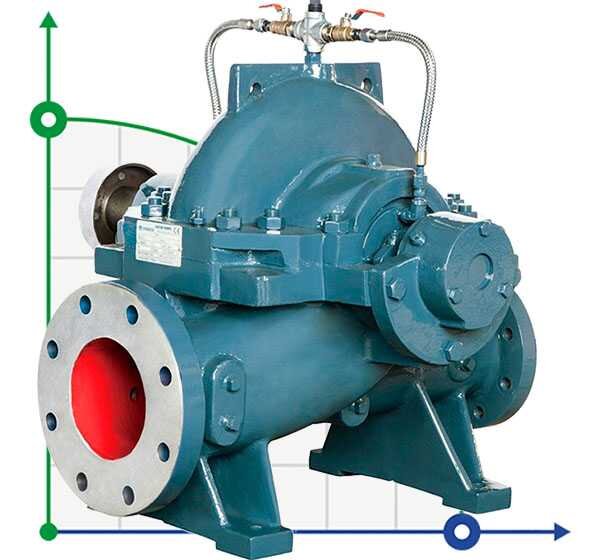

BSC 150-360A/B, (3000) Double Suction Split Case Pump

Click image for a larger view

Code: 1023016

(0 review)

Producer	BTS Engineering
Material	cast iron
PumpType	two-way entrance
Output pipe diameter	150
Input pipe diameter	200
Weight, kg	360
Pump capacity, cu.m/hour	892
Serial number of the pump	BSC
Drive Type	electric
Feed height, m	152
Model	BSC 150-360A/B
Country of Origin	China
Warranty, months	12
Dimensions, mm	800x881x600
Length of transport packing, cm	83
Width of transport packing, cm	91
Height of transport packing, cm	78
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Type of configuration	without engine
Nom.flow rate, m3/h	892
Nom.head, m	152
Impeller material	cast iron
Height of transport volume, cbm	0,589

Show all features (24)

Documentation

Description BSC 150-360A/B, (3000) Double Suction Split Case Pump

Double suction split case pump BSC DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1

Category: Double Suction Split Case Pumps

Features BSC 150-360A/B, (3000) Double Suction Split Case Pump

Producer	BTS Engineering
Material	cast iron
PumpType	two-way entrance
Output pipe diameter	150
Input pipe diameter	200
Weight, kg	360
Pump capacity, cu.m/hour	892
Serial number of the pump	BSC
Drive Type	electric
Feed height, m	152
Model	BSC 150-360A/B
Country of Origin	China
Warranty, months	12
Dimensions, mm	800x881x600
Length of transport packing, cm	83
Width of transport packing, cm	91
Height of transport packing, cm	78
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Type of configuration	without engine
Nom.flow rate, m3/h	892
Nom.head, m	152
Impeller material	cast iron
Height of transport volume, cbm	0,589
