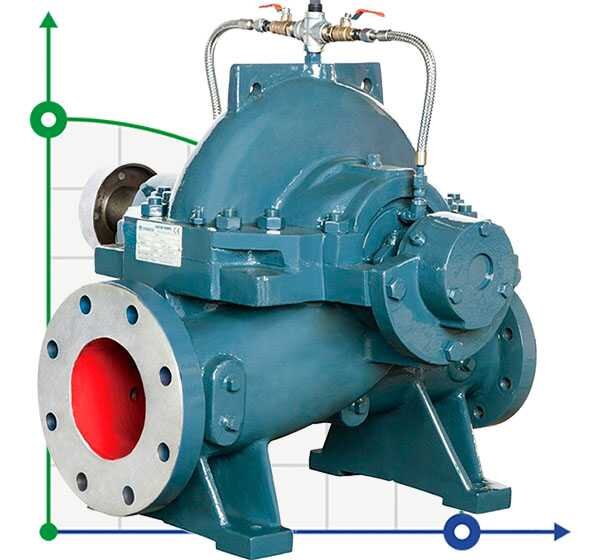

BSC4 250-370A/B, (1500) Double Suction Split Case Pump

Click image for a larger view

Code: 1023042

(0 review)

Producer	BTS Engineering
Material	cast iron
PumpType	two-way entrance
Output pipe diameter	DN250
Input pipe diameter	DN300
Weight, kg	665
Pump capacity, m3/h	1051
Serial number of the pump	BSC4
Drive Type	electric
Feed height, m	39
Model	BSC4 250-370A/B
Country of Origin	China
Warranty, months	12
Power capacity, kW	75, 90, 110, 132, 160
Dimensions, mm	1000x1119x900
Length of transport packing, cm	103
Width of transport packing, cm	115
Height of transport packing, cm	103
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 500
Type of configuration	without engine
Nom.flow rate, m3/h	1051
Nom.head, m	39
Impeller material	cast iron
Transport packing volume, cbm	1,220

Show all features (25)

Documentation

Description BSC4 250-370A/B, (1500) Double Suction Split Case Pump

Double suction split case pump BSC4 DESCRIPTION: - Axially split volute pump casing design - Pump case with anti-corrosive coating HT250 - Double-entry radial impeller in AISI 304 or HT250 - Shaft protecting sleeves in the seal area - Mechanical seal and gland packing are both available - Grease-packed rolling element bearings sealed for life - Reliable complete with motor or diesel for fire fighting etc. USING LIMITS: - Liquid temperature between -10℃ and +120℃ - Ambient temperature between 0℃ and +50℃ - Max. working pressure 25 bar/Continuous S1

Category: Double Suction Split Case Pumps
