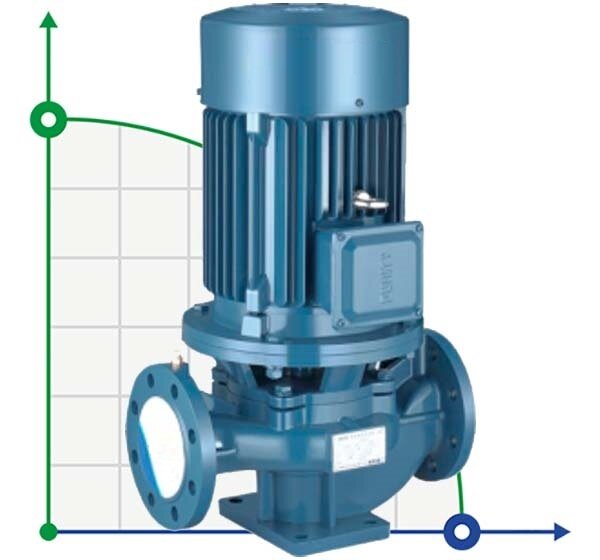

IRG BGL 40-200A (5,9/44), 3kW, 2880 centrifugal vertical pump

Code: 1026025
(0 review)
ProducerBTS Engineering
Materialcast iron
PumpTypein-line
Output pipe diameter40
Input pipe diameter40
Material of flow channelcast iron
Max.temperature, C120
Weight, kg62
Explosion protectionNo
Pump capacity, cu.m/hour5.9
Serial number of the pumpBGL
Drive Typeelectric
Feed height, m44
Country of OriginChina
Warranty, months12
Power capacity, kW3
Dimensions, mm340x330x560
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 880
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h5.9
Nom.head, m44
Applicationводоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
$645.89 (netto)
Добавить в сравнение
We deliver anywhere in the world
Applications: heat supply, irrigation, cooling and circulation, in central heating and hot water supply systems, fire extinguishing systems, booster systems, water treatment systems, irrigation, hot and cold water supply in heating, cooling and air conditioning systems, for boiler power supply due to reliable design pumps, pumping clean liquids that do not contain abrasive impurities and are not aggressive to the materials from which the pump is made. The pump is ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. If it is planned to pump a liquid, the density and / or viscosity of which differs from the same parameters of water, then due to changes in hydraulic power, it is necessary to take into account the required power of the motor in this case. Analogs: WILO IL, GRUNDFOS TP, Sprut 3VP, Calpeda NR / NRM, DAB ALM-ALP, ALME-ALPE, CM-DCM, CP-DCP, KLM-KLP- DKLM-DKLP, KLME-KLPE-DKLME-D
Category: In-line Pumps
ProducerBTS Engineering
Materialcast iron
PumpTypein-line
Output pipe diameter40
Input pipe diameter40
Material of flow channelcast iron
Max.temperature, C120
Weight, kg62
Explosion protectionNo
Pump capacity, cu.m/hour5.9
Serial number of the pumpBGL
Drive Typeelectric
Feed height, m44
Country of OriginChina
Warranty, months12
Power capacity, kW3
Dimensions, mm340x330x560
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 880
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h5.9
Nom.head, m44
Applicationводоснабжения, пожаротушения, орошения, систем полива, для систем водоснабжения, градирни
