| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| PumpType | in-line |
| Output pipe diameter | DN150 |
| Input pipe diameter | DN150 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 322 |
| Explosion protection | No |
| Pump capacity, m3/h | 173 |
| Serial number of the pump | BGLH |
| Drive Type | electric |
| Feed height, m | 24 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 18,5 |
| Dimensions, mm | 800x510x960 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 173 |
| Nom.head, m | 24 |

    | Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| PumpType | in-line |
| Output pipe diameter | DN150 |
| Input pipe diameter | DN150 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 322 |
| Explosion protection | No |
| Pump capacity, m3/h | 173 |
| Serial number of the pump | BGLH |
| Drive Type | electric |
| Feed height, m | 24 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 18,5 |
| Dimensions, mm | 800x510x960 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 480 |
| Protection | IP55 |
| Seal | Mechanical Seal, Carbon-SiC-NBR |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 173 |
| Nom.head, m | 24 |

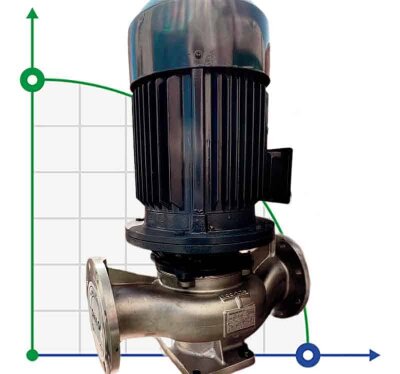

Download instructions, catalog for IHG BGLH 150-315(I)B (173/24), 18,5kW, 1480 Stainless Steel Vertical Pump
