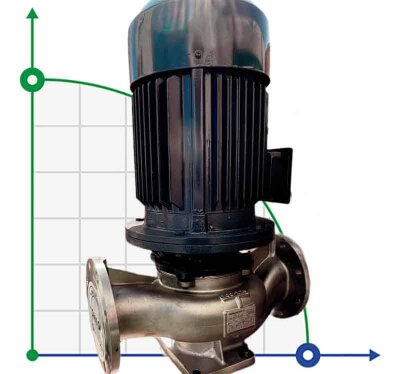

IHG BGLH 200-315(I) (400/32), 55kW, 1480 Stainless Steel Vertical Pump

Code: 1024081
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameterDN200
Input pipe diameterDN200
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg675
Explosion protectionNo
Pump capacity, m3/h400
Serial number of the pumpBGLH
Drive Typeelectric
Feed height, m32
Country of OriginChina
Warranty, months12
Power capacity, kW55
Dimensions, mm860x650x1270
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h400
Nom.head, m32
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$12,612 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameterDN200
Input pipe diameterDN200
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg675
Explosion protectionNo
Pump capacity, m3/h400
Serial number of the pumpBGLH
Drive Typeelectric
Feed height, m32
Country of OriginChina
Warranty, months12
Power capacity, kW55
Dimensions, mm860x650x1270
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h400
Nom.head, m32
