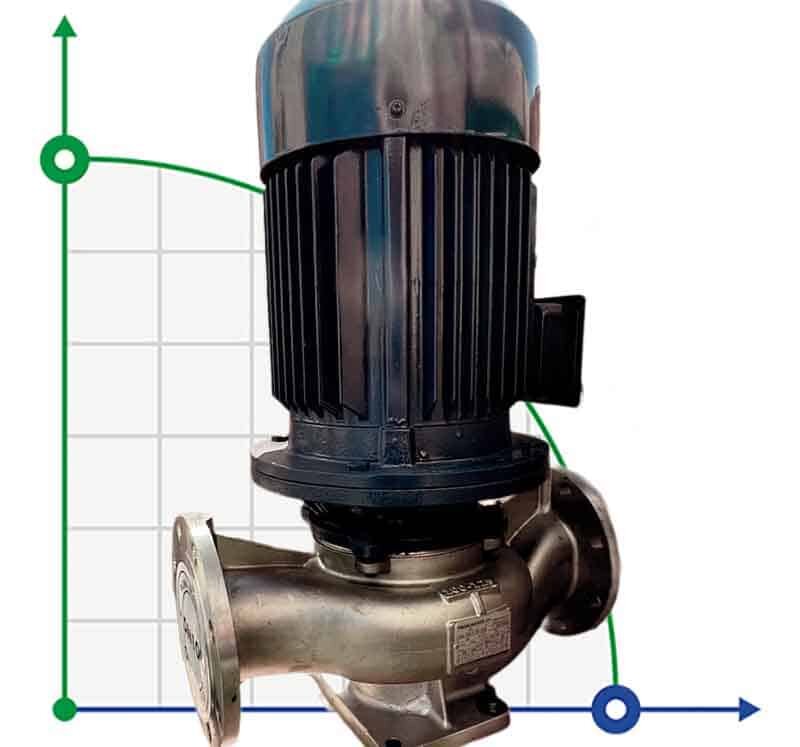

IHG BGLH 80-200(I)B (87/38), 15kW, 2880 Stainless Steel Vertical Pump

Click image for a larger view

Code: 1023953

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	in-line
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	198
Explosion protection	No
Pump capacity, cu.m/hour	87
Serial number of the pump	BGLH
Drive Type	electric
Feed height, m	38
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Dimensions, mm	480x430x810
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	87
Nom.head, m	38
Application	acid, каустика, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, alkalis, paints

Show all features (26)

Documentation

Description IHG BGLH 80-200(I)B (87/38), 15kW, 2880 Stainless Steel Vertical Pump

Industrial pumps made of stainless steel AISI 304, (housing, shaft, impeller) are designed for pumping food products: juice, milk, dairy products, beer, alcohol, saline solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.

Category: In-line Pumps

Features IHG BGLH 80-200(I)B (87/38), 15kW, 2880 Stainless Steel Vertical Pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	in-line
Output pipe diameter	80
Input pipe diameter	80
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	198
Explosion protection	No
Pump capacity, cu.m/hour	87
Serial number of the pump	BGLH
Drive Type	electric
Feed height, m	38
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Dimensions, mm	480x430x810
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	87
Nom.head, m	38
Application	acid, каустика, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, alkalis, paints
