IHG BGLHB 40-200A (5,9/44), 3kW, 2880, Ex Stainless Steel Vertical Pump

Click image for a larger view

Code: 1024397

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	in-line
Output pipe diameter	40
Input pipe diameter	40
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	62
Explosion protection	Yes
Pump capacity, cu.m/hour	5.9
Serial number of the pump	BGLHB
Drive Type	electric
Feed height, m	44
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Dimensions, mm	340x330x560
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	5.9
Nom.head, m	44
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Show all features (26)

Documentation

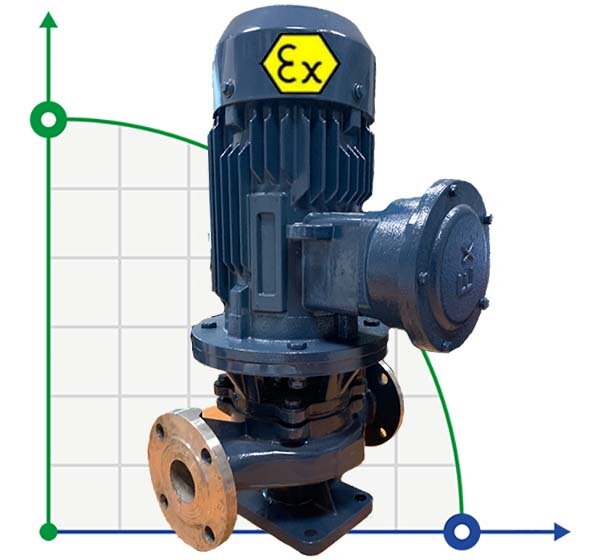

Description IHG BGLHB 40-200A (5,9/44), 3kW, 2880, Ex Stainless Steel Vertical Pump

BGLHB series pumps with Ex motor (explosion-proof version) ATEX is an abbreviation that stands for "ATmosphères EXplosibles" (French for "explosive atmospheres"). For pumping chemically aggressive liquids, saline solutions, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing equipment. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.

Category: In-line Pumps

Features IHG BGLHB 40-200A (5,9/44), 3kW, 2880, Ex Stainless Steel Vertical Pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	in-line
Output pipe diameter	40
Input pipe diameter	40
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	62
Explosion protection	Yes
Pump capacity, cu.m/hour	5.9
Serial number of the pump	BGLHB
Drive Type	electric
Feed height, m	44
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Dimensions, mm	340x330x560
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 880
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	5.9
Nom.head, m	44
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
