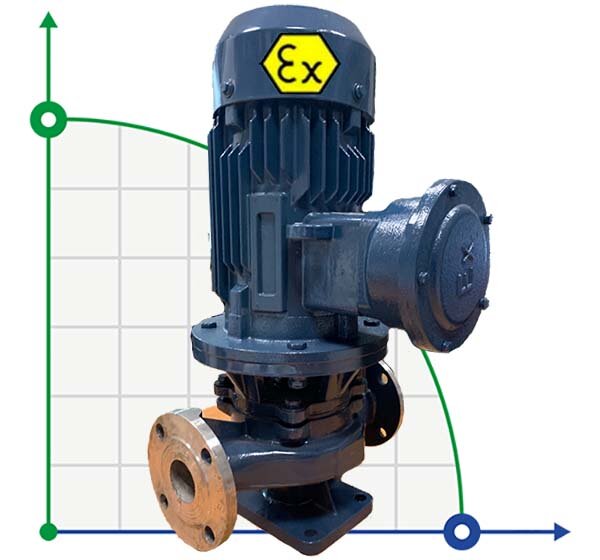

IHG BGLHB 50-250A (11,6/70), 7,5kW, 2880, Ex Stainless Steel Vertical Pump

Code: 1024425
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameterDN50
Input pipe diameterDN50
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg115
Explosion protectionYes
Pump capacity, m3/h11.6
Serial number of the pumpBGLHB
Drive Typeelectric
Feed height, m70
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Dimensions, mm440x430x650
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 880
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h11.6
Nom.head, m70
Show all features (26)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2,853 (netto)
Buy in 1 click
Добавить в сравнение
We deliver anywhere in the world
BGLHB series pumps with Ex motor (explosion-proof version) ATEX is an abbreviation that stands for "ATmosphères EXplosibles" (French for "explosive atmospheres"). For pumping chemically aggressive liquids, saline solutions, sea water, alkalis, acid solutions, CAS mineral fertilizers, caustic solutions for SIP washing equipment. For distilleries and breweries -for pumping batch, wort, used as a pump GDFO, mash and bards. Also ideal for pumping fusel oils, alcohol liquids. Pumps of this series are used for ultrafiltration and nanofiltration, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameterDN50
Input pipe diameterDN50
Material of flow channelAISI 304 stainless steel
Max.temperature, C120
Weight, kg115
Explosion protectionYes
Pump capacity, m3/h11.6
Serial number of the pumpBGLHB
Drive Typeelectric
Feed height, m70
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Dimensions, mm440x430x650
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 880
ProtectionIP55
SealMechanical Seal, Carbon-SiC-NBR
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h11.6
Nom.head, m70
