BT 100-320/15 pump in-line

Product list

Home
Pumps
In-line Pumps
BT 100-320/15 pump in-line

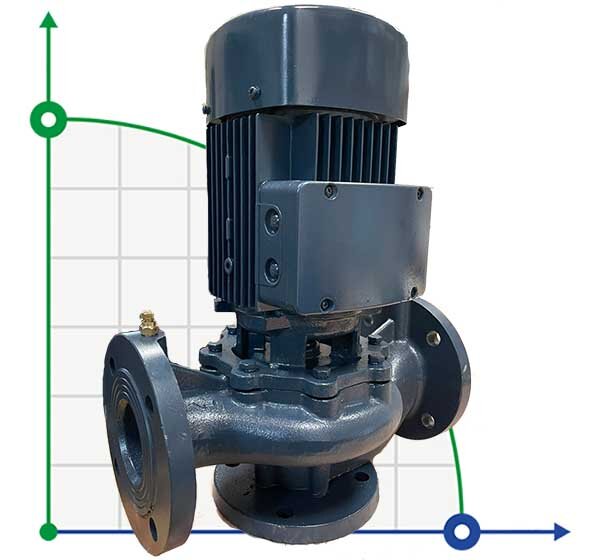

Click image for a larger view

More +3

Code: 1019202

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	32
PumpType	in-line
Output pipe diameter	DN100
Input pipe diameter	DN100
Max.temperature, C	120
Weight, kg	143
Max.flow rate, m3/h	210
Pump capacity, cu.m/hour	210
Serial number of the pump	BT
Drive Type	electric
Feed height, m	32
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Impeller material	cast iron
Height of transport volume, cbm	0,199
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	KOLMEKS

Show all features (26)

Documentation

Description BT 100-320/15 pump in-line

Stainless steel standard pump BZ Used for: water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural applications. Suitable for use with clean, aggressive liquids that are chemically compatible with the materials from which the pump is made. The pumps must be installed in enclosed places, or at least protected against inclement weather. TECHNICAL DESCRIPTION - New stainless steel standard pump - Original design by PURITY - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case in stainless steel AISI 304 - Impeller in stainless steel AISI 304 - Shaft in stainless steel AISI 304 - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar Continuous service S1

Category: In-line Pumps

Features BT 100-320/15 pump in-line

Producer	BTS Engineering
Material	cast iron
Max. head, m	32
PumpType	in-line
Output pipe diameter	DN100
Input pipe diameter	DN100
Max.temperature, C	120
Weight, kg	143
Max.flow rate, m3/h	210
Pump capacity, cu.m/hour	210
Serial number of the pump	BT
Drive Type	electric
Feed height, m	32
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Impeller material	cast iron
Height of transport volume, cbm	0,199
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	KOLMEKS
