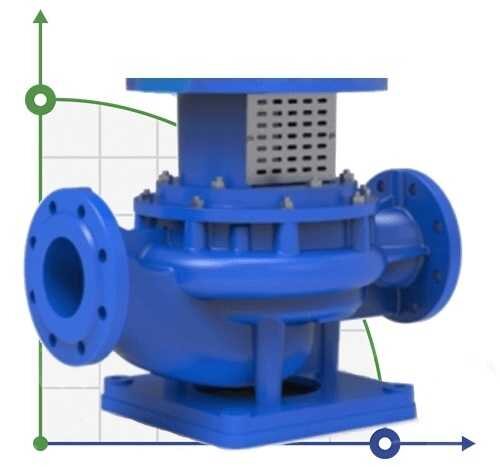

BTKF-I 50-200 in-line centrifual pump (1500)

Code: 1020286
(0 review)
ProducerERDURO
Materialcast iron
Max. head, m17
PumpTypein-line
Output pipe diameterDN50
Input pipe diameterDN50
Material of flow channelcast iron
Max.temperature, C120
Max.flow rate, m3/h25
Explosion protectionNo
Pump capacity, m3/h25
Serial number of the pumpBTKF-I
Drive Typeelectric
Feed height, m17
Country of OriginTurkey
Warranty, months12
Power capacity, kW0,75 - 1,1 - 1,5 - 2,2
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 500
Nom.pressure, Mpa1,6
Type of configurationwithout engine
Installation Typevertical
Show all features (23)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1,290 (netto)
Добавить в сравнение
We deliver anywhere in the world
In-Line Centrifual Pumps: - Equal to the diameters of the suction and pressure flanges ВTKF-I and on the same axis; - At installation saves space; - Quieter and less vibration; - ВTKF-I series is off the wheel and wheel balancing holes in the wings to minimize ta axial loads, dynamic loads are balanced within; - Switch to the motor shaft to the pump shaft is provided with the connection. If there are overloads of this type of connection coupling link is provided instead - Suction and discharge flanges are suitable standard ISO 7005-2/PN 16; - Cavitation tends to be more limited; - High Efficiency and long service life; - Shaft sealing by mechanical seal is provided; - Circulation pump applications, the preferred model. APPLICATIONS: - Heating systems; - District heating systems; - Central heating systems; - Domestic hot water systems; - Fire fighting systems.
Category: In-line Pumps
ProducerERDURO
Materialcast iron
Max. head, m17
PumpTypein-line
Output pipe diameterDN50
Input pipe diameterDN50
Material of flow channelcast iron
Max.temperature, C120
Max.flow rate, m3/h25
Explosion protectionNo
Pump capacity, m3/h25
Serial number of the pumpBTKF-I
Drive Typeelectric
Feed height, m17
Country of OriginTurkey
Warranty, months12
Power capacity, kW0,75 - 1,1 - 1,5 - 2,2
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 500
Nom.pressure, Mpa1,6
Type of configurationwithout engine
Installation Typevertical
