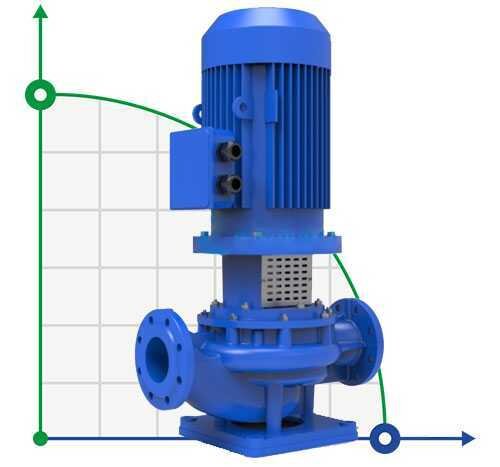

BTKF-I 65-200, 22 kW in-line pump (3000)

Click image for a larger view

Code: 1020634

Producer	ERDURO
Material	cast iron
Max. head, m	64
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	cast iron
Max.temperature, C	120
Weight, kg	182
Max.flow rate, m3/h	100
Explosion protection	No
Pump capacity, cu.m/hour	100
Serial number of the pump	BTKF-I
Drive Type	electric
Feed height, m	64
Country of Origin	Turkey
Warranty, months	12
Power capacity, kW	22
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Nom.pressure, Mpa	1,6
Type of configuration	with engine
Installation Type	vertical
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water

Show all features (24)

Description BTKF-I 65-200, 22 kW in-line pump (3000)

Vertical pump of the In-Line Series (3000) The design feature of the pump is a special design of the impeller with holes that reduce the axial load to prevent pressure drop and cavitation. The mechanical seal is made of chemical-resistant material to ensure long-term and reliable operation. It is used for pumping liquids with temperatures up to +120 ° C and viscosities up to 1200 kg / cubic meter It is used in heating and cooling systems, water supply, chemical, medical and metallurgical industries.

Category: In-line Pumps

Features BTKF-I 65-200, 22 kW in-line pump (3000)

Producer	ERDURO
Material	cast iron
Max. head, m	64
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	cast iron
Max.temperature, C	120
Weight, kg	182
Max.flow rate, m3/h	100
Explosion protection	No
Pump capacity, cu.m/hour	100
Serial number of the pump	BTKF-I
Drive Type	electric
Feed height, m	64
Country of Origin	Turkey
Warranty, months	12
Power capacity, kW	22
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Nom.pressure, Mpa	1,6
Type of configuration	with engine
Installation Type	vertical
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
