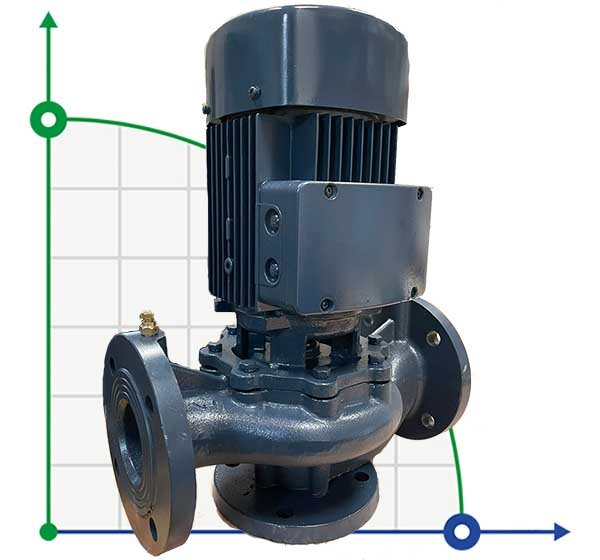

BTm 65-310/3 pump in-line

Product list

Home
Pumps
In-line Pumps
BTm 65-310/3 pump in-line

Click image for a larger view

More +3

Code: 1019214

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	31
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Max.temperature, C	120
Weight, kg	48
Max.flow rate, m3/h	42
Pump capacity, cu.m/hour	42
Serial number of the pump	BTm
Drive Type	electric
Feed height, m	31
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Impeller material	cast iron
Height of transport volume, cbm	0,069
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	KOLMEKS

Show all features (26)

Documentation

Description BTm 65-310/3 pump in-line

PT Vertical Inline Pump Suitable for use with clean water and liquids that are not chemically aggressive towards the materials from which the pump is made. The vertical inline pumps are recommended for use in water supply, cleaning sets, pressure boosting, firefighting sets, irrigation, industrial applications, water circulation in climatisation sets, agricultural. TECHNICAL DESCRIPTION: - New vertical inline pump - Original design by PURITY (patented) - Both square motor & round motor available - YE3 high efficient motor, with protection IP55 class F - Pump case with anti-corrosive coating - Impeller in stainless steel AISI 304 or cast iron - Shaft in stainless steel AISI 304 or galvanized iron - Galvanized counter flange with bolts, nuts and gaskets - Quality NSK bearing, wear resistance mechanical seal Liquid temperature between -10℃ and +120℃ Ambient temperature up to +50℃ Max. working pressure 16 bar

Category: In-line Pumps

Features BTm 65-310/3 pump in-line

Producer	BTS Engineering
Material	cast iron
Max. head, m	31
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Max.temperature, C	120
Weight, kg	48
Max.flow rate, m3/h	42
Pump capacity, cu.m/hour	42
Serial number of the pump	BTm
Drive Type	electric
Feed height, m	31
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Seal	Mechanical Seal, Carbon-SiC-NBR
Type of configuration	with engine
Installation Type	vertical
Impeller material	cast iron
Height of transport volume, cbm	0,069
Application	сушильной камеры, водоснабжения, котла, горячей воды, этиленгликоля, подачи воды, системы кондиционирования, гликоля, гвс, горячего водоснабжения, теплоносителя, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water
Analogue for	KOLMEKS
