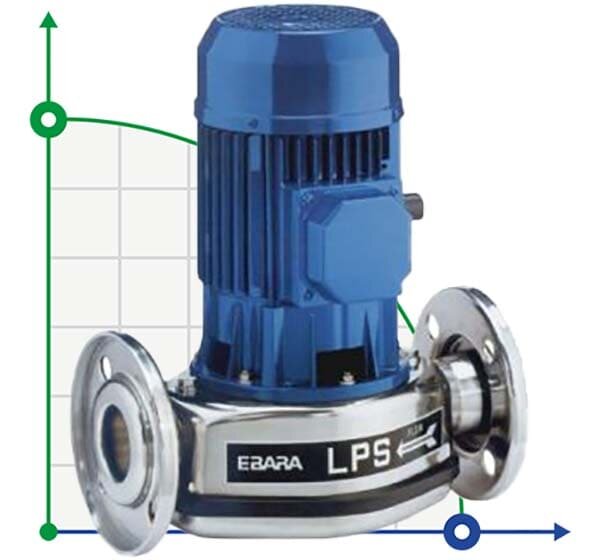

Circulation pump Ebara LPS 40/75M, 220V

Product list

Home
Pumps
In-line Pumps
Circulation pump Ebara LPS 40/75M, 220V

Click image for a larger view

Code: 1964070000

(0 review)

Producer	Ebara
Material	AISI 304 stainless steel
Max. head, m	17.3
PumpType	in-line
Output pipe diameter	DN40
Input pipe diameter	DN40
Max.temperature, C	100
Weight, kg	13,7
Max.flow rate, m3/h	15
Explosion protection	No
Pump capacity, m3/h	15
Serial number of the pump	LPS
Drive Type	electric
Feed height, m	17.3
Country of Origin	Italy
Power capacity, kW	0,75
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 800
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Carbon/Ceramic/NBR
Shaft material	AISI 303
Installation Type	vertical
Impeller material	AISI 304 stainless steel
Motor capacitor capacity, µF	25

Show all features (25)

Description Circulation pump Ebara LPS 40/75M, 220V

Ebara LPs series circulation pumps are made of Aisi 304 stainless steel. Application: hot and cold water circulation; washing systems; irrigation of plants; pumping of moderately aggressive liquids; air conditioning systems; heating systems; top dressing of plants; equipment for industrial painting. Technical features: robust construction; low noise in operation; compact dimensions; made of Aisi 304 stainless steel. Technical data: capacity up to 25 m3/h; supply height up to 21 m; temperature of the pumped liquid: -10°C ÷ 100°C; maximum pressure: 0.4 MPA.

Category: In-line Pumps

Features Circulation pump Ebara LPS 40/75M, 220V

Producer	Ebara
Material	AISI 304 stainless steel
Max. head, m	17.3
PumpType	in-line
Output pipe diameter	DN40
Input pipe diameter	DN40
Max.temperature, C	100
Weight, kg	13,7
Max.flow rate, m3/h	15
Explosion protection	No
Pump capacity, m3/h	15
Serial number of the pump	LPS
Drive Type	electric
Feed height, m	17.3
Country of Origin	Italy
Power capacity, kW	0,75
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 800
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Carbon/Ceramic/NBR
Shaft material	AISI 303
Installation Type	vertical
Impeller material	AISI 304 stainless steel
Motor capacitor capacity, µF	25
