Circulation pump Ebara LPS/I 32/25, 380V

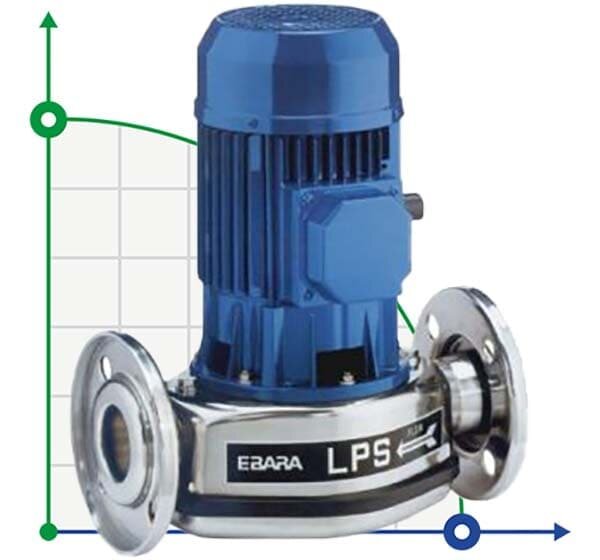

Circulation pump Ebara LPS/I 32/25, 380V

Click image for a larger view

Code: 1963030004I

(0 review)

Producer	Ebara
Material	AISI 304 stainless steel
Max. head, m	12
PumpType	in-line
Output pipe diameter	32
Input pipe diameter	32
Max.temperature, C	100
Weight, kg	11,6
Max.flow rate, m3/h	9
Explosion protection	No
Pump capacity, cu.m/hour	9
Serial number of the pump	LPS
Drive Type	electric
Feed height, m	12
Country of Origin	Italy
Power capacity, kW	0,25
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 800
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Carbon/Ceramic/NBR
Shaft material	AISI 303
Installation Type	vertical
Impeller material	AISI 304 stainless steel

Show all features (24)

Description Circulation pump Ebara LPS/I 32/25, 380V

Ebara LPs series circulation pumps are made of Aisi 304 stainless steel. Application: hot and cold water circulation; washing systems; irrigation of plants; pumping of moderately aggressive liquids; air conditioning systems; heating systems; top dressing of plants; equipment for industrial painting. Technical features: robust construction; low noise in operation; compact dimensions; made of Aisi 304 stainless steel. Technical data: capacity up to 25 m3/h; supply height up to 21 m; temperature of the pumped liquid: -10°C ÷ 100°C; maximum pressure: 0.4 MPA.

Category: In-line Pumps

Features Circulation pump Ebara LPS/I 32/25, 380V

Producer	Ebara
Material	AISI 304 stainless steel
Max. head, m	12
PumpType	in-line
Output pipe diameter	32
Input pipe diameter	32
Max.temperature, C	100
Weight, kg	11,6
Max.flow rate, m3/h	9
Explosion protection	No
Pump capacity, cu.m/hour	9
Serial number of the pump	LPS
Drive Type	electric
Feed height, m	12
Country of Origin	Italy
Power capacity, kW	0,25
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 800
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, Carbon/Ceramic/NBR
Shaft material	AISI 303
Installation Type	vertical
Impeller material	AISI 304 stainless steel
