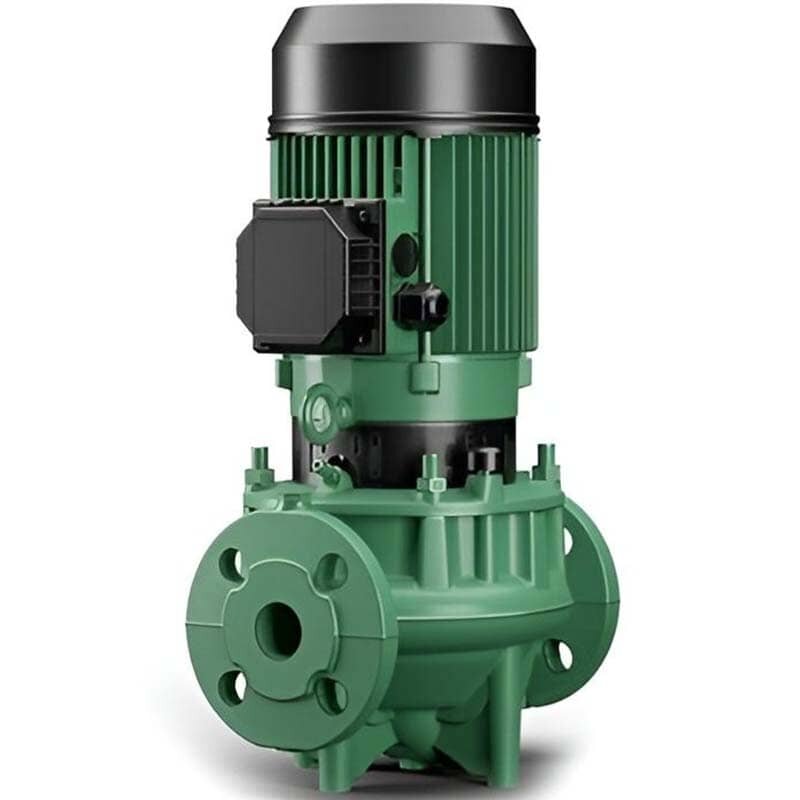

DAB CP2 centrifugal IN-LINE pump.
Circulation pumps with in-line connection, designed for civil and industrial installations for heating, air conditioning, cooling and hot water for water networks. Available in single and double versions.
TECHNICAL DATA:
Operating range: up to 105 m³/h at a head of up to 110 m.
Type of pumped liquid: clean, free of solids or abrasives, non-viscous, non-aggressive, non-crystallised.
Glycol percentage (maximum): 50%.
Liquid temperature (range): -15°C + 140°C.
Maximum room temperature: +50°C.
Working pressure (maximum): 1600 kPa.
Flanged or threaded: PN 10 PN16.
Motor efficiency class: IE2 up to 0.55 kW; IE3 ≥ 0.75 kW.
Motor protection class: IP X5.
Motor insulation class: F.
Impeller material: cast iron or technopolymer.
Input voltage: 3x230 V 50 Hz / 3x400 V 50 Hz.
Maximum speed: 2910 rpm.
Installation type:
Fixed in horizontal or vertical position with motor in upper position.
Only in vertical position for motor from 7.5 kW.
Water quality: clean, free of solid or abrasive particles, non-viscous, non-aggressive, non-crystallized and chemically neutral.
