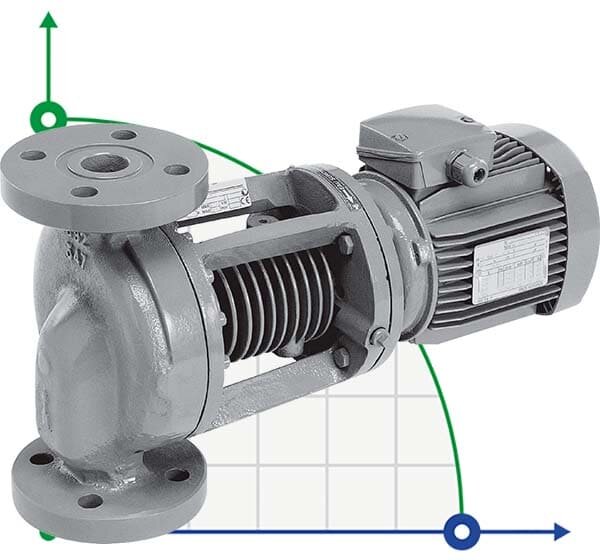

Pump for very hot liquids WILO IPH-W 65/125-2,2/2

Click image for a larger view

Code: 2121285

Producer	Wilo
Max. head, m	18
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	cast iron
Max.temperature, C	210
Max.flow rate, m3/h	50
Pump capacity, m3/h	50
Serial number of the pump	IPH-W
Drive Type	electric
Feed height, m	18
Country of Origin	Germany
Power capacity, kW	2,2
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	2,3
Type of configuration	with engine
Installation Type	horizontal

Show all features (18)

Documentation

Description Pump for very hot liquids WILO IPH-W 65/125-2,2/2

Single-stage centrifugal pump WILO IPH with dry rotor in-line type for operation with very hot liquids. Three-phase electric motor with one-piece shaft and special lantern for housing with cooling fins for mechanical seal. This series is designed for installation in pipes with a horizontal shaft of the pump motor. IPH-O for temperatures up to 350 degrees IPH-W for temperatures up to 210 degrees

Category: In-line Pumps

Features Pump for very hot liquids WILO IPH-W 65/125-2,2/2

Producer	Wilo
Max. head, m	18
PumpType	in-line
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	cast iron
Max.temperature, C	210
Max.flow rate, m3/h	50
Pump capacity, m3/h	50
Serial number of the pump	IPH-W
Drive Type	electric
Feed height, m	18
Country of Origin	Germany
Power capacity, kW	2,2
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	2,3
Type of configuration	with engine
Installation Type	horizontal
