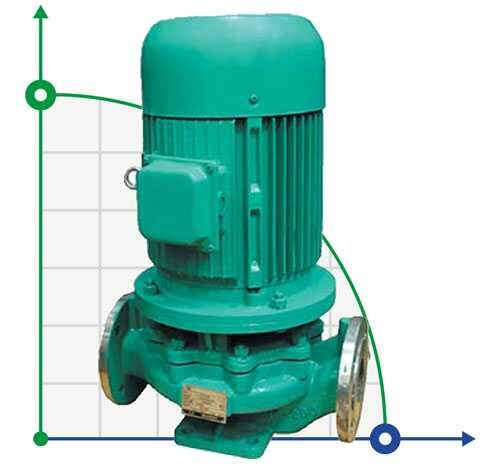

IHG 80-200 Centrifugal pump

Product list

Home
Pumps
In-line Pumps
IHG 80-200 Centrifugal pump

Click image for a larger view

Code: 1029110

(0 review)

Producer	BTS Engineering
Material	AISI 201 stainless steel
PumpType	in-line
Output pipe diameter	DN80
Input pipe diameter	DN80
Material of flow channel	AISI 201 stainless steel
Max.temperature, C	120
Pump capacity, cu.m/hour	50
Availability of spare parts	Yes
Serial number of the pump	IHG
Drive Type	electric
Feed height, m	50
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1,6
Installation Type	vertical
Nom.flow rate, m3/h	50
Nom.head, m	50
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Show all features (21)

Documentation

Description IHG 80-200 Centrifugal pump

IHG Series dry motor pumps are vertical in-line single stage centrifugal chemical pumps designed for pumping of media in oil, chemical, metal, electric power, paper as well as healthcare industries. Temperature of inlet media ranges from -20 оС to +120 оС in standard design. Main pump body details and impeller are made of high quality stainless steel resistant to aggressive media. IHG Series pumps are available in ATEX design

Category: In-line Pumps

Features IHG 80-200 Centrifugal pump

Producer	BTS Engineering
Material	AISI 201 stainless steel
PumpType	in-line
Output pipe diameter	DN80
Input pipe diameter	DN80
Material of flow channel	AISI 201 stainless steel
Max.temperature, C	120
Pump capacity, cu.m/hour	50
Availability of spare parts	Yes
Serial number of the pump	IHG
Drive Type	electric
Feed height, m	50
Country of Origin	China
Warranty, months	12
Power capacity, kW	15
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1,6
Installation Type	vertical
Nom.flow rate, m3/h	50
Nom.head, m	50
Application	каустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
