| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 22 |
| PumpType | in-line |
| Output pipe diameter | DN100 |
| Input pipe diameter | DN100 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Max.flow rate, m3/h | 105 |
| Explosion protection | No |
| Pump capacity, cu.m/hour | 105 |
| Availability of spare parts | yes |
| Serial number of the pump | JL |
| Drive Type | electric |
| Feed height, m | 22 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 7,5 |
| Power supply | 3х380 V, 50 Hz |
| Nom.pressure, Mpa | 1,6 |
| Installation Type | vertical |
| Volume, m3 | 0,112 |
| Net weight,kg | 94 |
| Application | горячего водоснабжения, теплоносителя, гвс, гликоля, системы кондиционирования, подачи воды, этиленгликоля, горячей воды, котла, водоснабжения, сушильной камеры, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water |
| Analogue for | DAB DKLP, WILO CronoLine-IL-E, DAB DCP-G, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, DAB CP-G, DAB DCP, DAB ALP, DAB KLM, DAB KLP, DAB DKLM, DAB CM, EBARA LPS, DAB ALM, Calpeda NM, WILO VeroLine-IPL, WILO TOP-S, EBARA EGO EASY, Grundfos UPS, Speroni SCR, KSB Etaline, PSPRUT 3VP, KSB Calio, SPRUT 3VP, SPRUT GPD, SPRUT 1V, KSB Etanorm, CALPEDA NC, KSB Etaline-R, KSB Calio S, CALPEDA NR |
| Producer | BTS Engineering |
| Material | cast iron |
| Max. head, m | 22 |
| PumpType | in-line |
| Output pipe diameter | DN100 |
| Input pipe diameter | DN100 |
| Material of flow channel | cast iron |
| Max.temperature, C | 120 |
| Max.flow rate, m3/h | 105 |
| Explosion protection | No |
| Pump capacity, cu.m/hour | 105 |
| Availability of spare parts | yes |
| Serial number of the pump | JL |
| Drive Type | electric |
| Feed height, m | 22 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 7,5 |
| Power supply | 3х380 V, 50 Hz |
| Nom.pressure, Mpa | 1,6 |
| Installation Type | vertical |
| Volume, m3 | 0,112 |
| Net weight,kg | 94 |
| Application | горячего водоснабжения, теплоносителя, гвс, гликоля, системы кондиционирования, подачи воды, этиленгликоля, горячей воды, котла, водоснабжения, сушильной камеры, cooling, полива, градирни, ледяной воды, оборотного водоснабжения, отопления, сушки, циркуляции, повышения давления, water |
| Analogue for | DAB DKLP, WILO CronoLine-IL-E, DAB DCP-G, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP, DAB CP-G, DAB DCP, DAB ALP, DAB KLM, DAB KLP, DAB DKLM, DAB CM, EBARA LPS, DAB ALM, Calpeda NM, WILO VeroLine-IPL, WILO TOP-S, EBARA EGO EASY, Grundfos UPS, Speroni SCR, KSB Etaline, PSPRUT 3VP, KSB Calio, SPRUT 3VP, SPRUT GPD, SPRUT 1V, KSB Etanorm, CALPEDA NC, KSB Etaline-R, KSB Calio S, CALPEDA NR |

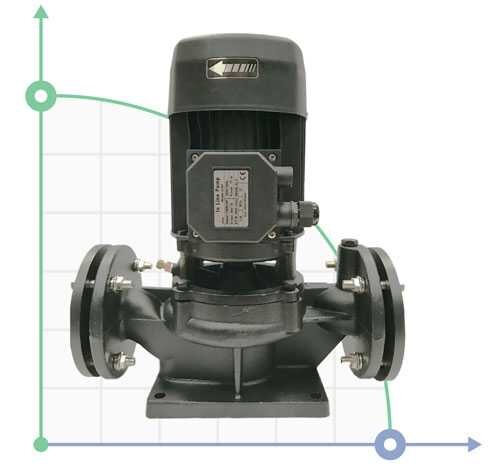

Download instructions, catalog for JL 100-10 Centrifugal pump
