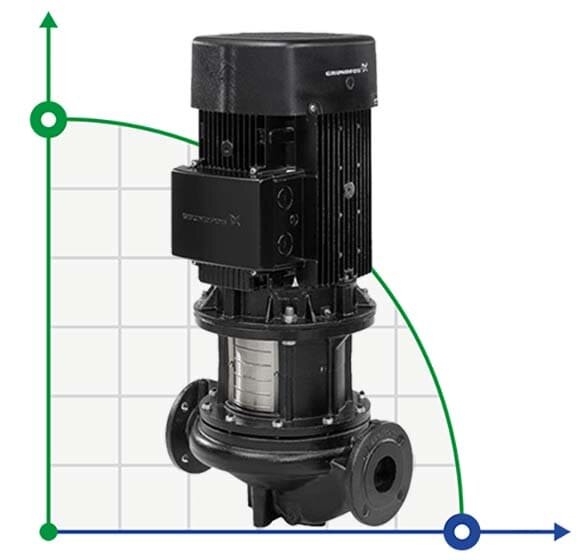

In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1

Product list

Home
Pumps
In-line Pumps
In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1

In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1

Click image for a larger view

Code: 96384271

(0 review)

Producer	GRUNDFOS
Material	cast iron
Max. head, m	12
PumpType	in-line
Output pipe diameter	DN 50
Input pipe diameter	DN 50
Max.temperature, C	120
Weight, kg	29,6
Explosion protection	No
Pump capacity, cu.m/hour	20
Serial number of the pump	TP
Drive Type	electric
Feed height, m	12
Country of Origin	Denmark
Power capacity, kW	1,1
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 890
Protection	IP55
Housing material	Сast iron
Installation Type	vertical
Nom.flow rate, m3/h	20
Nom.head, m	8.1
Impeller material	cast iron
Impeller diameter, mm	87

Show all features (24)

Description In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1

One-stage single in-line centrifugal pump Advantages of this series of pumps: - cataphoretic treatment of the flow part; - rigid sleeve coupling, which facilitates maintenance;; - hydraulically balanced flow part; In-line design with suction and discharge nozzles, allows pumps to be mounted in pipelines or on a concrete foundation, maintenance-free butt seal made of corrosion-resistant metal.

Category: In-line Pumps

Features In-line pump Grundfos TP 50-160/2 A-F-A-BQQE-GX1

Producer	GRUNDFOS
Material	cast iron
Max. head, m	12
PumpType	in-line
Output pipe diameter	DN 50
Input pipe diameter	DN 50
Max.temperature, C	120
Weight, kg	29,6
Explosion protection	No
Pump capacity, cu.m/hour	20
Serial number of the pump	TP
Drive Type	electric
Feed height, m	12
Country of Origin	Denmark
Power capacity, kW	1,1
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	2 890
Protection	IP55
Housing material	Сast iron
Installation Type	vertical
Nom.flow rate, m3/h	20
Nom.head, m	8.1
Impeller material	cast iron
Impeller diameter, mm	87
