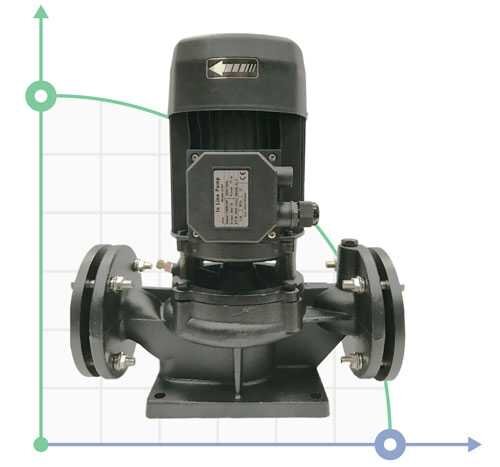

JL 40T Centrifugal pump

Click image for a larger view

More +1

Code: 1008562

(0 review)

Producer	BTS Engineering
Material	cast iron
Max. head, m	14
PumpType	in-line
Output pipe diameter	DN40
Input pipe diameter	DN40
Material of flow channel	cast iron
Max.temperature, C	120
Max.flow rate, m3/h	20
Pump capacity, m3/h	20
Availability of spare parts	Yes
Serial number of the pump	JL
Drive Type	electric
Feed height, m	14
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1
Installation Type	vertical
Volume, m3	0,059
Net weight,kg	22
Analogue for	DAB CP, Grundfos UPS, EBARA EGO EASY, EBARA LPS, WILO VeroLine-IPL, WILO CronoLine-IL-E, WILO TOP-S, DAB DCP-G, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP-G, PSPRUT 3VP, DAB DCP, DAB ALP, DAB KLM, DAB KLP, DAB DKLM, DAB DKLP, DAB CM, DAB ALM, Calpeda NM, KSB Etaline, SPRUT 1V, SPRUT 3VP, KSB Calio, KSB Calio S, KSB Etanorm, KSB Etaline-R, CALPEDA NC, CALPEDA NR, Speroni SCR, SPRUT GPD

Show all features (24)

Documentation

Description JL 40T Centrifugal pump

Flange-type centrifugal pumps are applied in sealed and open vented heating systems with forced coolant circulation. Medium doesn’t come in contact with the pump motor in comparison to the pumps with wet rotor. Inlet and discharge pipes of JL centrifugal pumps are parallel to each other with the similar nominal bores. The JL pumps are equipped with standard flange-type electric air-cooled motors.

Category: In-line Pumps

Features JL 40T Centrifugal pump

Producer	BTS Engineering
Material	cast iron
Max. head, m	14
PumpType	in-line
Output pipe diameter	DN40
Input pipe diameter	DN40
Material of flow channel	cast iron
Max.temperature, C	120
Max.flow rate, m3/h	20
Pump capacity, m3/h	20
Availability of spare parts	Yes
Serial number of the pump	JL
Drive Type	electric
Feed height, m	14
Country of Origin	China
Warranty, months	12
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1
Installation Type	vertical
Volume, m3	0,059
Net weight,kg	22
Analogue for	DAB CP, Grundfos UPS, EBARA EGO EASY, EBARA LPS, WILO VeroLine-IPL, WILO CronoLine-IL-E, WILO TOP-S, DAB DCP-G, DAB CM-G, DAB DCM, DAB DCM-G, DAB CP-G, PSPRUT 3VP, DAB DCP, DAB ALP, DAB KLM, DAB KLP, DAB DKLM, DAB DKLP, DAB CM, DAB ALM, Calpeda NM, KSB Etaline, SPRUT 1V, SPRUT 3VP, KSB Calio, KSB Calio S, KSB Etanorm, KSB Etaline-R, CALPEDA NC, CALPEDA NR, Speroni SCR, SPRUT GPD
