| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | in-line |
| Output pipe diameter | DN80 |
| Input pipe diameter | DN80 |
| Material of flow channel | cast iron |
| Weight, kg | 90 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 2,8 |
| Pump capacity, m3/h | 22.2 |
| Serial number of the pump | TKG |
| Drive Type | electric |
| Feed height, m | 15.8 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 2,2 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 450 |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 22.2 |
| Nom.head, m | 15.8 |
| Impeller diameter, mm | 235 |
| Producer | BTS Engineering |
| Material | cast iron |
| PumpType | in-line |
| Output pipe diameter | DN80 |
| Input pipe diameter | DN80 |
| Material of flow channel | cast iron |
| Weight, kg | 90 |
| Explosion protection | No |
| Suction capacity (NPSH), m | 2,8 |
| Pump capacity, m3/h | 22.2 |
| Serial number of the pump | TKG |
| Drive Type | electric |
| Feed height, m | 15.8 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 2,2 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 450 |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 22.2 |
| Nom.head, m | 15.8 |
| Impeller diameter, mm | 235 |

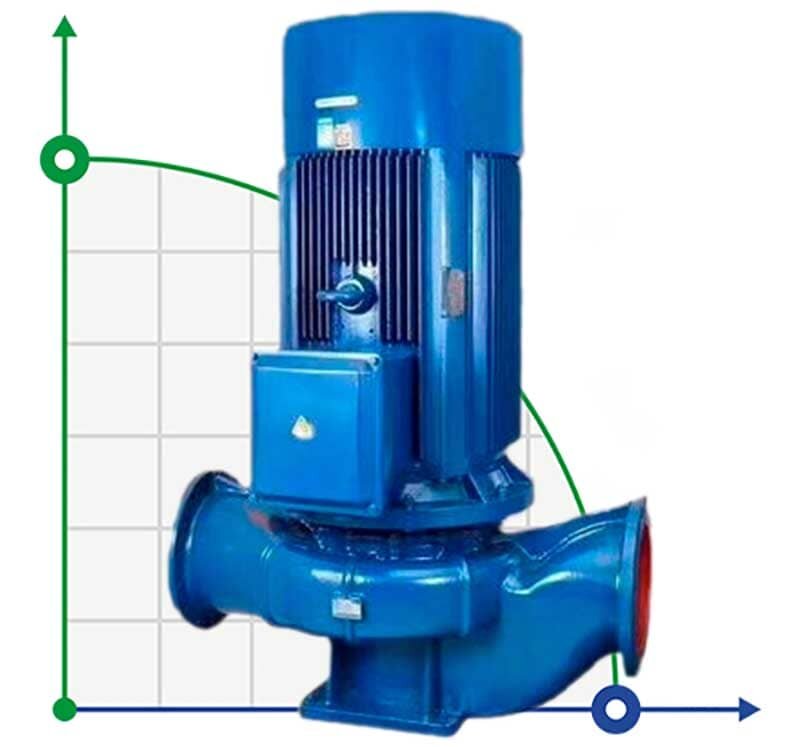

Download instructions, catalog for Water supply pump IRG TKG 80/235-2.2/4 (22.2/15.8), 2.2 kW, 1450
