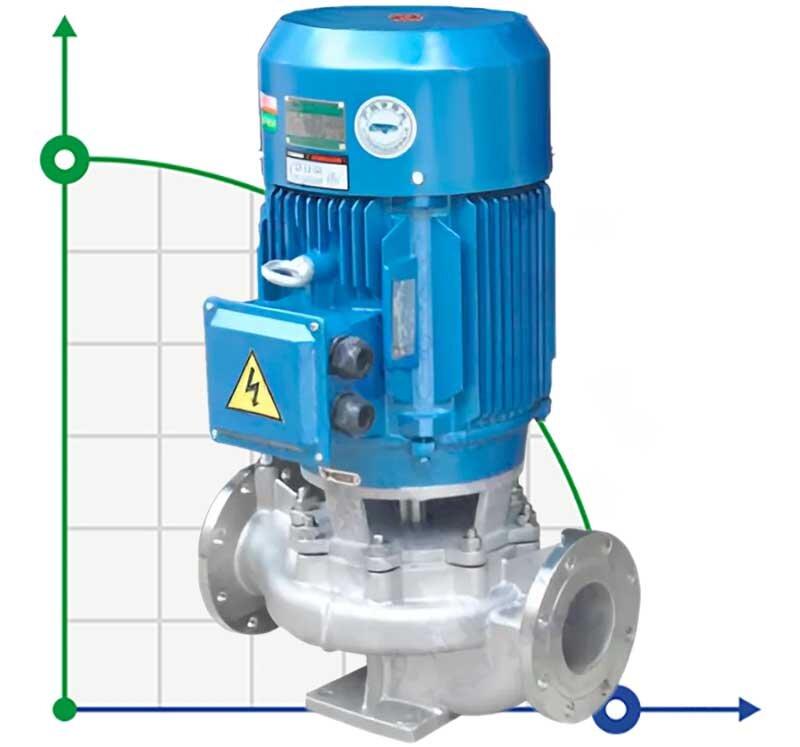

Stainless steel lye pump IHG TKHG 125/235-7.5/4 (94/18), 7.5 kW, AISI 304, 1450

Code: 1048097
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter125
Input pipe diameter125
Material of flow channelAISI 304 stainless steel
Weight, kg175
Explosion protectionNo
Suction capacity (NPSH), m4,5
Pump capacity, m3/h94
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m18
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h94
Nom.head, m18
Impeller diameter, mm235
Applicationacid, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, каустика, alkalis, paints
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHG series made of AISI 304 stainless steel (body, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping civet oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter125
Input pipe diameter125
Material of flow channelAISI 304 stainless steel
Weight, kg175
Explosion protectionNo
Suction capacity (NPSH), m4,5
Pump capacity, m3/h94
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m18
Country of OriginChina
Warranty, months12
Power capacity, kW7,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h94
Nom.head, m18
Impeller diameter, mm235
Applicationacid, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, каустика, alkalis, paints

Download instructions, catalog for Stainless steel lye pump IHG TKHG 125/235-7.5/4 (94/18), 7.5 kW, AISI 304, 1450
