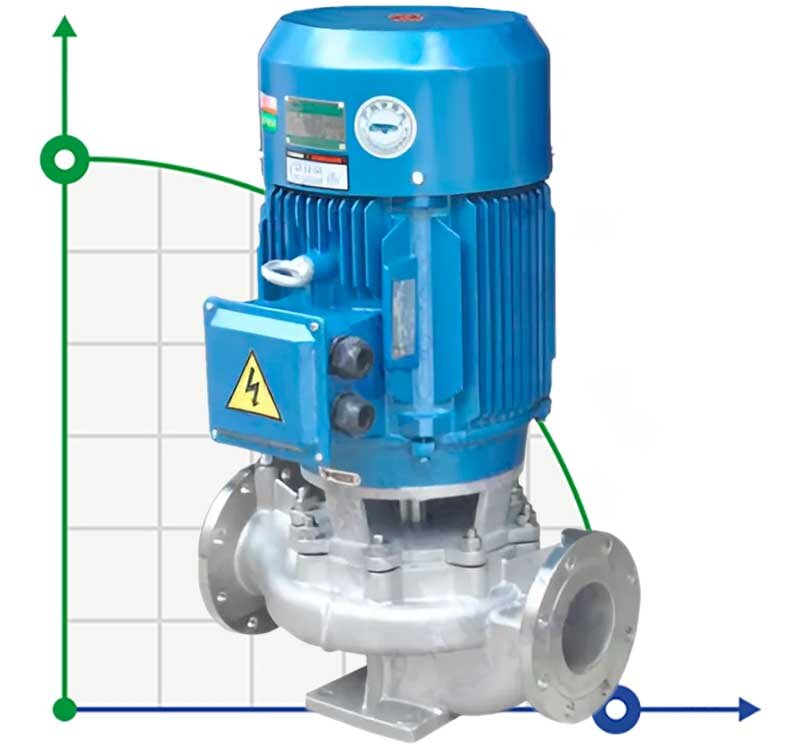

IHG TKHG 300/300-75/4 (720/28), 75 kW, AISI 304, 1480 stainless in-line pump

Code: 1048237
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Weight, kg1 350
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour720
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m28
Country of OriginChina
Warranty, months12
Power capacity, kW75
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h720
Nom.head, m28
Impeller diameter, mm300
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHG series made of AISI 304 stainless steel (body, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping civet oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Weight, kg1 350
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour720
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m28
Country of OriginChina
Warranty, months12
Power capacity, kW75
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h720
Nom.head, m28
Impeller diameter, mm300
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for IHG TKHG 300/300-75/4 (720/28), 75 kW, AISI 304, 1480 stainless in-line pump
