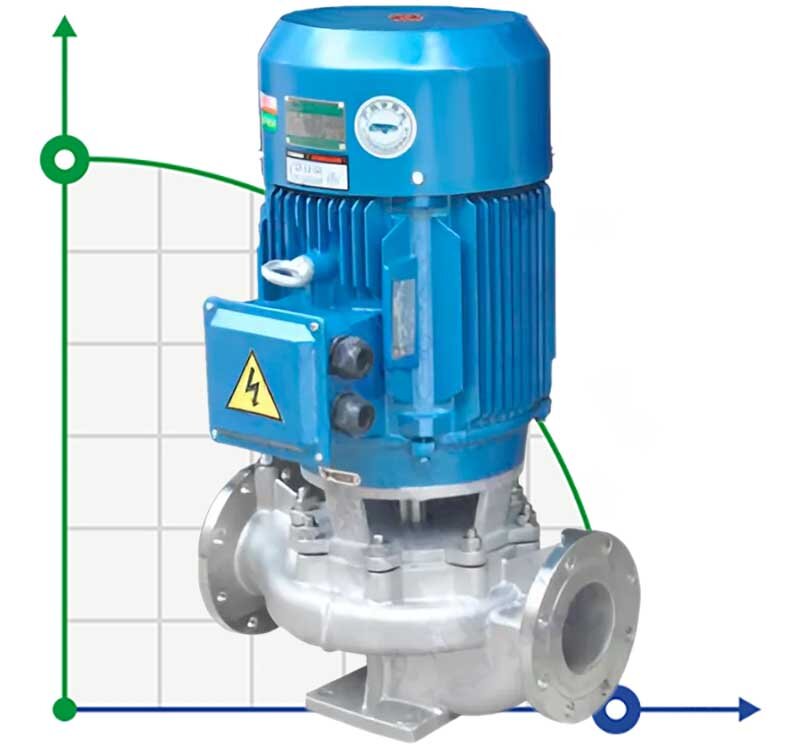

Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
Click image for a larger view
Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900

Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900

Code: 1047986
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter80
Input pipe diameter80
Material of flow channelAISI 304 stainless steel
Weight, kg105
Explosion protectionNo
Suction capacity (NPSH), m3
Pump capacity, cu.m/hour50
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m20
Country of OriginChina
Warranty, months12
Power capacity, kW5,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h50
Nom.head, m20
Impeller diameter, mm125
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$1,987.49 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHG series made of AISI 304 stainless steel (body, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping civet oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter80
Input pipe diameter80
Material of flow channelAISI 304 stainless steel
Weight, kg105
Explosion protectionNo
Suction capacity (NPSH), m3
Pump capacity, cu.m/hour50
Serial number of the pumpTKHG
Drive Typeelectric
Feed height, m20
Country of OriginChina
Warranty, months12
Power capacity, kW5,5
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h50
Nom.head, m20
Impeller diameter, mm125
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for Stainless pump for in-line chemistry IHG TKHG 80/125-5.5/2 (50/20), 5.5 kW, AISI 304, 2900
