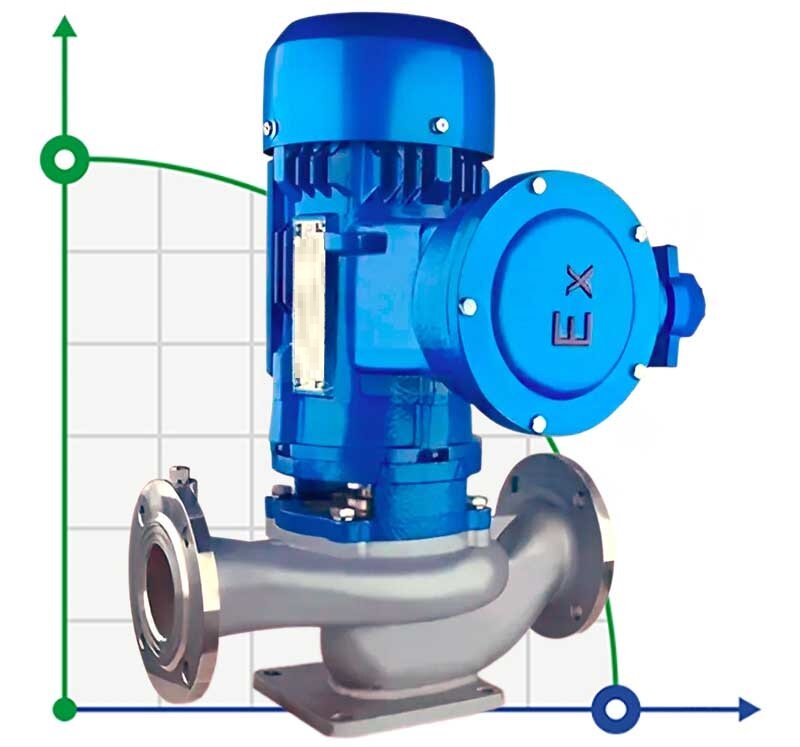

IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
Click image for a larger view
IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line

IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line

Code: 1048982
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter200
Input pipe diameter200
Material of flow channelAISI 304 stainless steel
Weight, kg270
Explosion protectionYes
Suction capacity (NPSH), m3
Pump capacity, cu.m/hour184
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW15
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h184
Nom.head, m17
Impeller diameter, mm235
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$7,858.48 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter200
Input pipe diameter200
Material of flow channelAISI 304 stainless steel
Weight, kg270
Explosion protectionYes
Suction capacity (NPSH), m3
Pump capacity, cu.m/hour184
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m17
Country of OriginChina
Warranty, months12
Power capacity, kW15
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h184
Nom.head, m17
Impeller diameter, mm235
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for IHG TKHGB 200/235-15/4 (184/17), 15 kW, AISI 304, 1480, Ex pump stainless in-line
