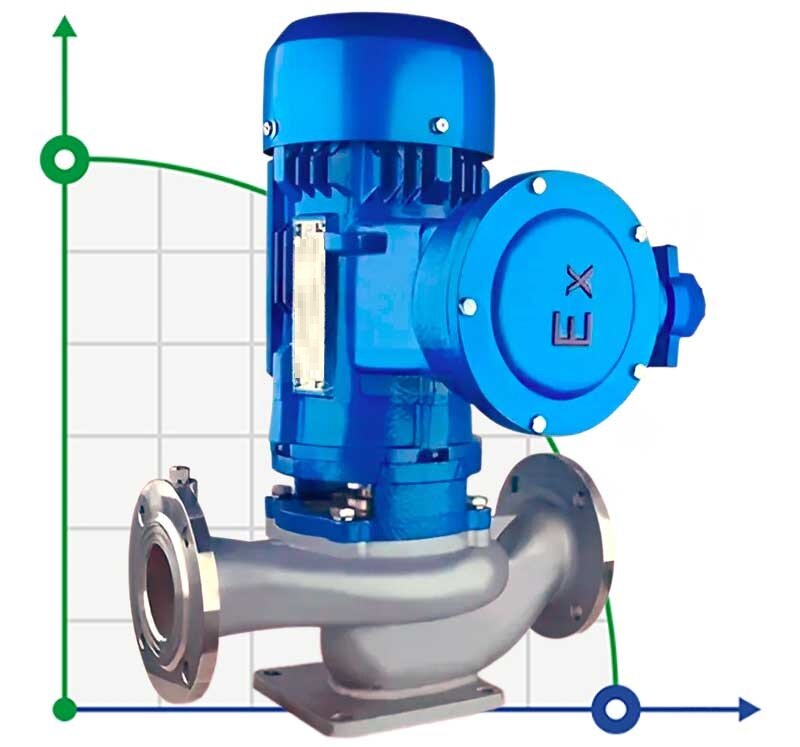

IHG TKHGB 50/300-22/2 (23.7/113), 22 kW, AISI 304, 2900, Ex pump stainless in-line

Code: 1048768
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter50
Input pipe diameter50
Material of flow channelAISI 304 stainless steel
Weight, kg265
Explosion protectionYes
Suction capacity (NPSH), m2,5
Pump capacity, cu.m/hour23.7
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m113
Country of OriginChina
Warranty, months12
Power capacity, kW22
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h23.7
Nom.head, m113
Impeller diameter, mm300
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$5,979.98 (netto)
Добавить в сравнение
We deliver anywhere in the world
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter50
Input pipe diameter50
Material of flow channelAISI 304 stainless steel
Weight, kg265
Explosion protectionYes
Suction capacity (NPSH), m2,5
Pump capacity, cu.m/hour23.7
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m113
Country of OriginChina
Warranty, months12
Power capacity, kW22
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h23.7
Nom.head, m113
Impeller diameter, mm300
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for IHG TKHGB 50/300-22/2 (23.7/113), 22 kW, AISI 304, 2900, Ex pump stainless in-line
