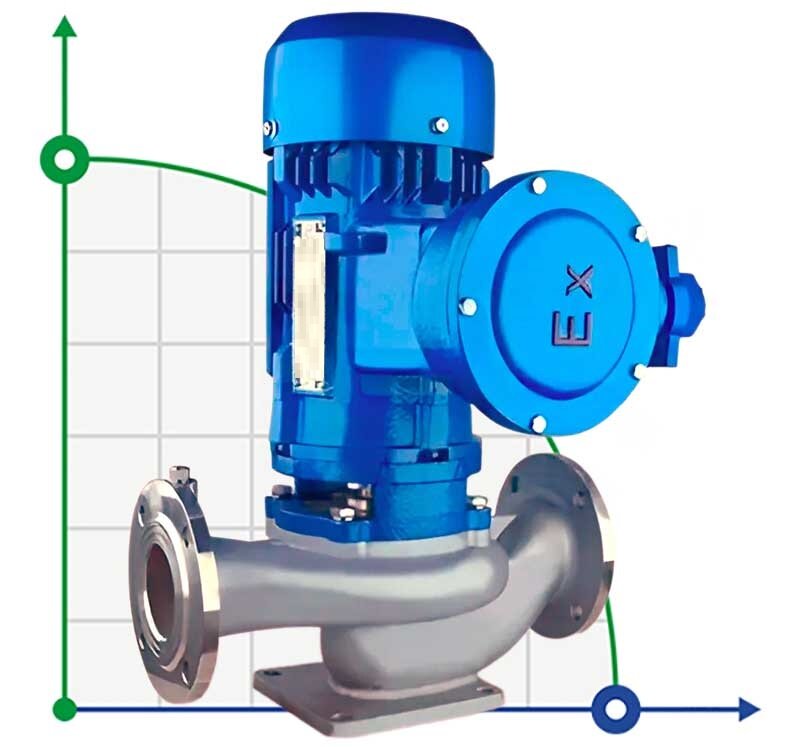

Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
Click image for a larger view
Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex

Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex

Code: 1048841
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter80
Input pipe diameter80
Material of flow channelAISI 304 stainless steel
Weight, kg100
Explosion protectionYes
Suction capacity (NPSH), m2,8
Pump capacity, cu.m/hour20.2
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m21
Country of OriginChina
Warranty, months12
Power capacity, kW3
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h20.2
Nom.head, m21
Impeller diameter, mm285
Applicationacid, каустика, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, alkalis, paints
Show all features (24)
Documentation
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial centrifugal in-line pumps of the TKHGB series with explosion-proof electric motor Ex. For pumping chemically aggressive liquids, salt solutions, sea water, alkalis, acid solutions, KAS mineral fertilizers, caustic solutions for SIP washing of equipment. For distilleries and breweries - for pumping mash, wort, it is used as a pump for DHFO, brews and bards. It is also ideal for pumping fescue oils, alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration installations, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypein-line
Output pipe diameter80
Input pipe diameter80
Material of flow channelAISI 304 stainless steel
Weight, kg100
Explosion protectionYes
Suction capacity (NPSH), m2,8
Pump capacity, cu.m/hour20.2
Serial number of the pumpTKHGB
Drive Typeelectric
Feed height, m21
Country of OriginChina
Warranty, months12
Power capacity, kW3
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 450
Type of configurationwith engine
Installation Typevertical
Nom.flow rate, m3/h20.2
Nom.head, m21
Impeller diameter, mm285
Applicationacid, каустика, сип промывки, абразивных жидкостей, food, coagulant, bards, wort, oils, alkalis, paints

Download instructions, catalog for Pump for alcohol explosion-proof IHG TKHGB 80/285-3/4 (20.2/21), 3 kW, AISI 304, 1450, Ex
