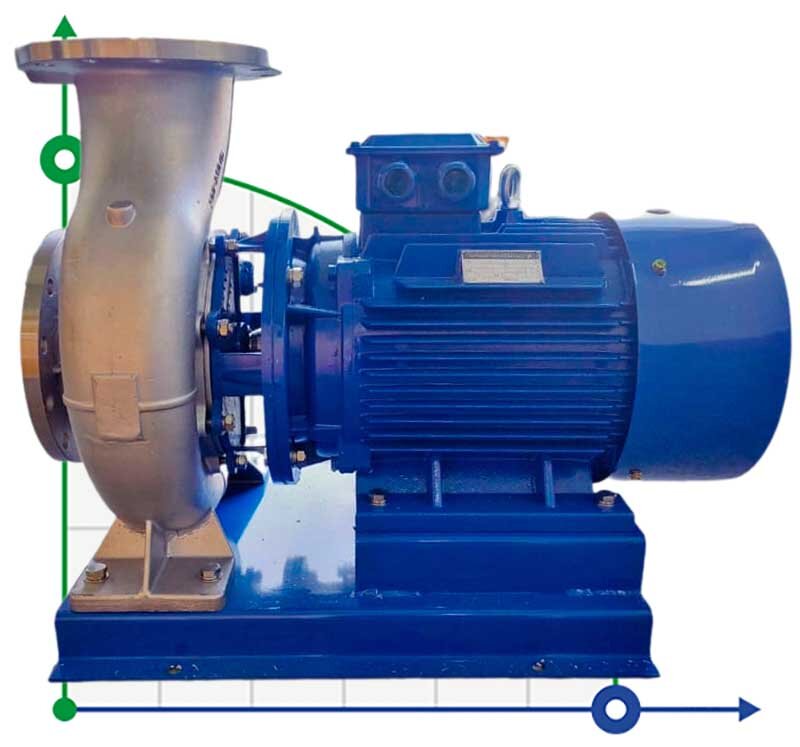

TKHW 300/260-55/4 (623/21), 55 kW, AISI 304, 1480 horizontal stainless steel pump

Code: 1048655
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Weight, kg1 170
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour623
Serial number of the pumpTKHW
Drive Typeelectric
Feed height, m21
Country of OriginChina
Warranty, months12
Power capacity, kW55
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h623
Nom.head, m21
Impeller diameter, mm260
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints
Show all features (24)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
On request
Добавить в сравнение
We deliver anywhere in the world
Industrial pumps of the TKHW series made of stainless steel AISI 304 (casing, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, UAN fertilisers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.
Category: In-line Pumps
ProducerBTS Engineering
MaterialAISI 304 stainless steel
PumpTypeconsole
Output pipe diameter300
Input pipe diameter300
Material of flow channelAISI 304 stainless steel
Weight, kg1 170
Explosion protectionNo
Suction capacity (NPSH), m5
Pump capacity, cu.m/hour623
Serial number of the pumpTKHW
Drive Typeelectric
Feed height, m21
Country of OriginChina
Warranty, months12
Power capacity, kW55
Power supply3х380 V, 50 Hz
Rate of turn, rpm1 480
Type of configurationwith engine
Installation Typehorizontal
Nom.flow rate, m3/h623
Nom.head, m21
Impeller diameter, mm260
Applicationкаустика, сип промывки, абразивных жидкостей, food, coagulant, acid, bards, wort, oils, alkalis, paints

Download instructions, catalog for TKHW 300/260-55/4 (623/21), 55 kW, AISI 304, 1480 horizontal stainless steel pump
