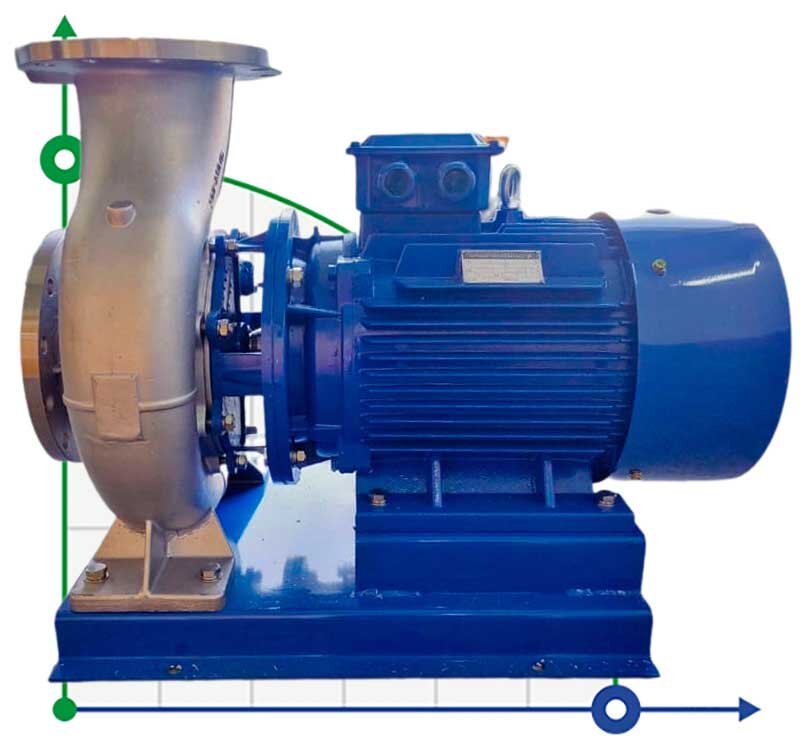

TKHW 300/325-90/4 (614/32), 90 kW, AISI 304, 1480 horizontal stainless steel pump

Click image for a larger view

Code: 1048661

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	300
Input pipe diameter	300
Material of flow channel	AISI 304 stainless steel
Weight, kg	1 400
Explosion protection	No
Suction capacity (NPSH), m	5
Pump capacity, cu.m/hour	614
Serial number of the pump	TKHW
Drive Type	electric
Feed height, m	32
Country of Origin	China
Warranty, months	12
Power capacity, kW	90
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 480
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	614
Nom.head, m	32
Impeller diameter, mm	325
Application	абразивных жидкостей, food, coagulant, acid, каустика, bards, wort, oils, сип промывки, alkalis, paints

Show all features (24)

Documentation

Description TKHW 300/325-90/4 (614/32), 90 kW, AISI 304, 1480 horizontal stainless steel pump

Industrial pumps of the TKHW series made of stainless steel AISI 304 (casing, shaft, impeller) are used for pumping liquid food products: juice, milk, dairy products, beer, alcohol, salt solutions, acetic acid solutions and other products. For pumping chemically aggressive liquids, seawater, alkalis, acid solutions, UAN fertilisers, caustic solutions for SIP washing. For distilleries and breweries - for pumping mash, wort, used as a GDFO pump, mash and bards. It is also ideal for pumping fusel oils and alcoholic liquids. Pumps of this series are used for ultrafiltration and nanofiltration plants, permeate and filtrate supply.

Category: In-line Pumps

Features TKHW 300/325-90/4 (614/32), 90 kW, AISI 304, 1480 horizontal stainless steel pump

Producer	BTS Engineering
Material	AISI 304 stainless steel
PumpType	console
Output pipe diameter	300
Input pipe diameter	300
Material of flow channel	AISI 304 stainless steel
Weight, kg	1 400
Explosion protection	No
Suction capacity (NPSH), m	5
Pump capacity, cu.m/hour	614
Serial number of the pump	TKHW
Drive Type	electric
Feed height, m	32
Country of Origin	China
Warranty, months	12
Power capacity, kW	90
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	1 480
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	614
Nom.head, m	32
Impeller diameter, mm	325
Application	абразивных жидкостей, food, coagulant, acid, каустика, bards, wort, oils, сип промывки, alkalis, paints
