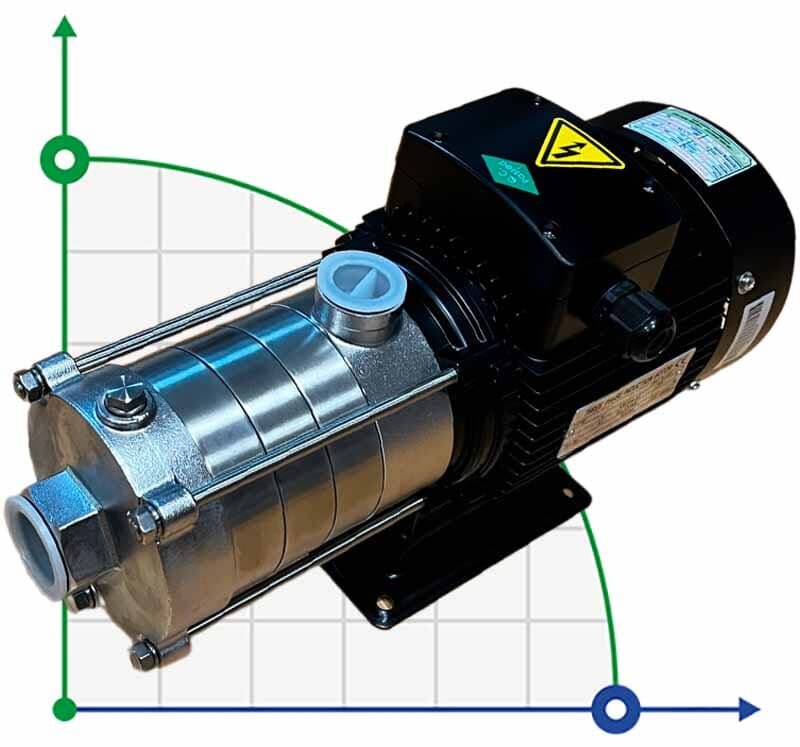

Horizontal multistage boiler feed pump DW(S)5-40/075, AISI304, 380V/50Hz

Code: 1042876
(0 review)
ProducerBTS Engineering
MaterialAISI 304 stainless steel
Max. head, m38
PumpTypemulti-stage
Output pipe diameterG1
Input pipe diameterG1 1/4
Material of flow channelAISI 304 stainless steel
Max.temperature, C80
Weight, kg11
Max.flow rate, m3/h6.5
Explosion protectionNo
Pump capacity, cu.m/hour6.5
Serial number of the pumpDW(S)
Drive Typeelectric
Feed height, m38
Country of OriginChina
Warranty, months12
Power capacity, kW0,75
Dimensions, mm366x147x177
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Installation Typehorizontal
Show all features (22)
Ukraine: In stock
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$396.47 (netto)
Добавить в сравнение
We deliver anywhere in the world
Multi-stage horizontal stainless steel centrifugal pump for hot water DW(S). Applications: water supply systems, boiler feeding, water treatment systems, pharmaceutical and food industry, chemical processing industry, washing and sprinkling. Suitable for transporting clean and non-corrosive liquids that are not aggressive to AISI304 stainless steel. The casing, impeller, back cover, pump shaft and diffusers are made of AISI304 stainless steel. Liquid temperature: -15C ~ + 80C. Axial suction, radial discharge. This pump can be used at full head without overloading the motor.
ProducerBTS Engineering
MaterialAISI 304 stainless steel
Max. head, m38
PumpTypemulti-stage
Output pipe diameterG1
Input pipe diameterG1 1/4
Material of flow channelAISI 304 stainless steel
Max.temperature, C80
Weight, kg11
Max.flow rate, m3/h6.5
Explosion protectionNo
Pump capacity, cu.m/hour6.5
Serial number of the pumpDW(S)
Drive Typeelectric
Feed height, m38
Country of OriginChina
Warranty, months12
Power capacity, kW0,75
Dimensions, mm366x147x177
Power supply3х380 V, 50 Hz
Rate of turn, rpm2 900
Installation Typehorizontal

Download instructions, catalog for Horizontal multistage boiler feed pump DW(S)5-40/075, AISI304, 380V/50Hz
