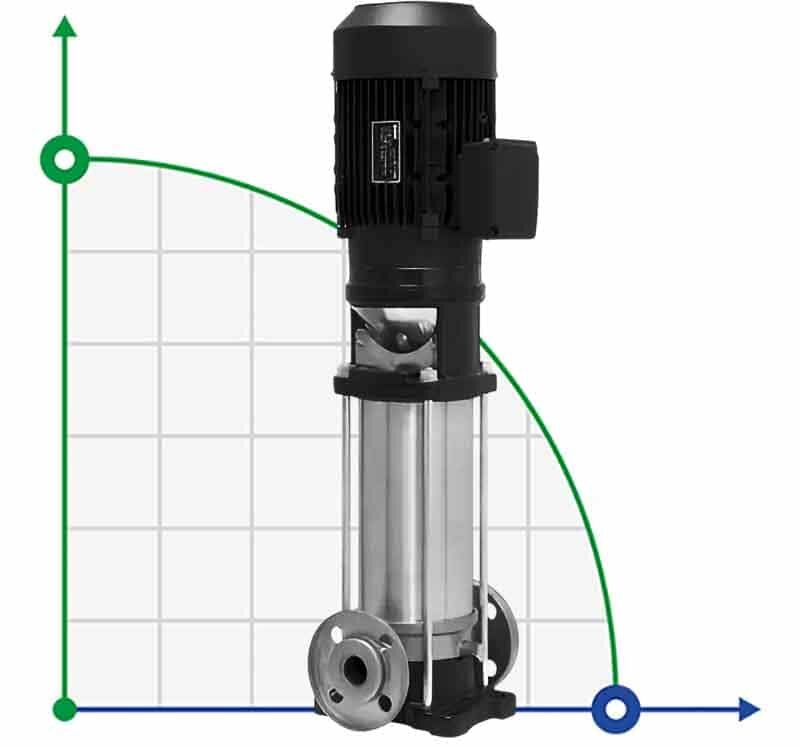

Multistage pressure boosting pump EVX 45/12, 45 kW, 65 m3/h, 296m, 380V/T, AISI 304 (EBARA EVM)

Multistage pressure boosting pump EVX 45/12, 45 kW, 65 m3/h, 296m, 380V/T, AISI 304 (EBARA EVM)

Click image for a larger view

Code: 1051477

(0 review)

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	296
PumpType	multi-stage
Output pipe diameter	DN80
Input pipe diameter	DN80
Max.temperature, C	120
Weight, kg	496,5
Max.flow rate, m3/h	65
Explosion protection	No
Pump capacity, cu.m/hour	65
Serial number of the pump	EVXE
Drive Type	electric
Feed height, m	296
Country of Origin	Italy
Power capacity, kW	45
Length of transport packing, cm	2 350
Width of transport packing, cm	480
Height of transport packing, cm	520
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, SiC/Carbon/EPDM
Type of configuration	with engine
Installation Type	vertical
Impeller material	AISI 304 stainless steel
Pressure, bar	16
Application	фонтана, мембран, осмоса, промывки, горячей воды, котла, форсунки, парового котла, водоподготовки, каустика, водоочистки, водоснабжения, мойки, орошения, аэропоники, теплиц, гидропоники, alkalis, повышения давления, water
Analogue for	EBARA EVMW, Ebara EVMS, Speroni RVM, Grundfos CR, EBARA EVM, Varna, VMtec PRIMA VMEV, Lowara SV, Calpeda MXV, Dab KVC, Aquatica LVR

Show all features (30)

Description Multistage pressure boosting pump EVX 45/12, 45 kW, 65 m3/h, 296m, 380V/T, AISI 304 (EBARA EVM)

The vertical multistage pumps of the EVX series are suitable for various applications, mainly in industry and construction (boiler feed, hot and cold water circulation for heating/cooling/air conditioning systems, pressure boosting and water supply systems, washing plants, water treatment plants, etc.). All parts of the pump in contact with the liquid are made of AISI 304 stainless steel (AISI 316 on request). The professional vertical multistage pumps have simple in-line installation, as well as easy dismantling and maintenance.
