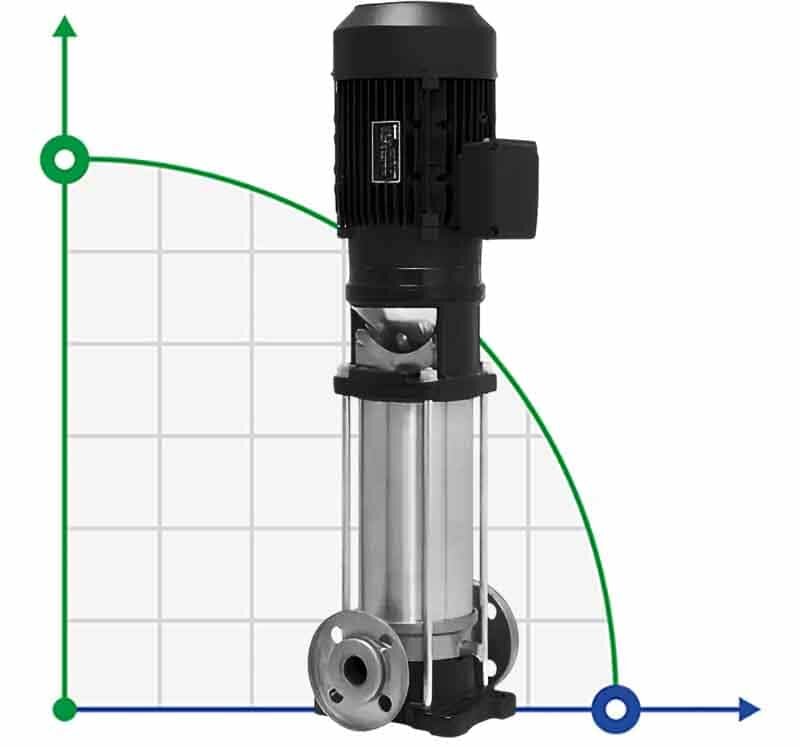

Multistage pump for air conditioning systems EVXE 10/6, 2.2 kW, 15 m3/h, 65.5m, 220V/M, AISI 304 (EBARA EVM)

Product list

Home
Pumps
Multistage Pumps
Multistage pump for air conditioning systems EVXE 10/6, 2.2 kW, 15 m3/h, 65.5m, 220V/M, AISI 304 (EBARA EVM)

Multistage pump for air conditioning systems EVXE 10/6, 2.2 kW, 15 m3/h, 65.5m, 220V/M, AISI 304 (EBARA EVM)

Click image for a larger view

Code: 1051293

(0 review)

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	65.5
PumpType	multi-stage
Output pipe diameter	DN40
Input pipe diameter	DN40
Max.temperature, C	120
Weight, kg	40,5
Max.flow rate, m3/h	15
Explosion protection	No
Pump capacity, cu.m/hour	15
Serial number of the pump	EVXE
Drive Type	electric
Feed height, m	65.5
Country of Origin	Italy
Power capacity, kW	2,2
Length of transport packing, cm	400
Width of transport packing, cm	1 000
Height of transport packing, cm	430
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, SiC/Carbon/EPDM
Type of configuration	with engine
Installation Type	vertical
Impeller material	AISI 304 stainless steel
Pressure, bar	16
Application	фонтана, мембран, осмоса, промывки, горячей воды, котла, форсунки, парового котла, водоподготовки, каустика, водоочистки, водоснабжения, мойки, орошения, аэропоники, теплиц, гидропоники, alkalis, повышения давления, water
Analogue for	EBARA EVMW, Ebara EVMS, Speroni RVM, Grundfos CR, EBARA EVM, Varna, VMtec PRIMA VMEV, Lowara SV, Calpeda MXV, Dab KVC, Aquatica LVR

Show all features (30)

Description Multistage pump for air conditioning systems EVXE 10/6, 2.2 kW, 15 m3/h, 65.5m, 220V/M, AISI 304 (EBARA EVM)

The vertical multistage pumps of the EVXE series are suitable for various applications, mainly in industry and construction (boiler feed, hot and cold water circulation for heating/cooling/air conditioning systems, pressure boosting and water supply systems, washing plants, water treatment plants, etc.). All parts of the pump in contact with the liquid are made of AISI 304 stainless steel (AISI 316 on request). The professional vertical multistage pumps have simple in-line installation, as well as easy dismantling and maintenance.

Category: Multistage Pumps

Features Multistage pump for air conditioning systems EVXE 10/6, 2.2 kW, 15 m3/h, 65.5m, 220V/M, AISI 304 (EBARA EVM)

Producer	ST Pompe
Material	AISI 304 stainless steel
Max. head, m	65.5
PumpType	multi-stage
Output pipe diameter	DN40
Input pipe diameter	DN40
Max.temperature, C	120
Weight, kg	40,5
Max.flow rate, m3/h	15
Explosion protection	No
Pump capacity, cu.m/hour	15
Serial number of the pump	EVXE
Drive Type	electric
Feed height, m	65.5
Country of Origin	Italy
Power capacity, kW	2,2
Length of transport packing, cm	400
Width of transport packing, cm	1 000
Height of transport packing, cm	430
Power supply	1х220 V, 50 Hz
Rate of turn, rpm	3 000
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal, SiC/Carbon/EPDM
Type of configuration	with engine
Installation Type	vertical
Impeller material	AISI 304 stainless steel
Pressure, bar	16
Application	фонтана, мембран, осмоса, промывки, горячей воды, котла, форсунки, парового котла, водоподготовки, каустика, водоочистки, водоснабжения, мойки, орошения, аэропоники, теплиц, гидропоники, alkalis, повышения давления, water
Analogue for	EBARA EVMW, Ebara EVMS, Speroni RVM, Grundfos CR, EBARA EVM, Varna, VMtec PRIMA VMEV, Lowara SV, Calpeda MXV, Dab KVC, Aquatica LVR
