| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| Max. head, m | 134 |
| PumpType | multi-stage |
| Output pipe diameter | DN25 |
| Input pipe diameter | DN25 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 36 |
| Max.flow rate, m3/h | 3.5 |
| Explosion protection | Yes |
| Pump capacity, cu.m/hour | 3.5 |
| Serial number of the pump | BVS |
| Drive Type | electric |
| Feed height, m | 134 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | AISI 304 stainless steel |
| Seal | Mechanical Seal |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 2 |
| Nom.head, m | 112 |
| Impeller material | AISI 304 stainless steel |
| Application | мембран, гидропоники, осмоса, промывки, горячей воды, котла, форсунки, фонтана, парового котла, водоподготовки, каустика, теплиц, водоснабжения, аэропоники, мойки, орошения, водоочистки, alkalis, повышения давления, water |
| Analogue for | Calpeda MXV, Grundfos CR, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM |
| Producer | BTS Engineering |
| Material | AISI 304 stainless steel |
| Max. head, m | 134 |
| PumpType | multi-stage |
| Output pipe diameter | DN25 |
| Input pipe diameter | DN25 |
| Material of flow channel | AISI 304 stainless steel |
| Max.temperature, C | 120 |
| Weight, kg | 36 |
| Max.flow rate, m3/h | 3.5 |
| Explosion protection | Yes |
| Pump capacity, cu.m/hour | 3.5 |
| Serial number of the pump | BVS |
| Drive Type | electric |
| Feed height, m | 134 |
| Country of Origin | China |
| Warranty, months | 12 |
| Power capacity, kW | 1,5 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 2 900 |
| Protection | IP55 |
| Housing material | AISI 304 stainless steel |
| Seal | Mechanical Seal |
| Type of configuration | with engine |
| Installation Type | vertical |
| Nom.flow rate, m3/h | 2 |
| Nom.head, m | 112 |
| Impeller material | AISI 304 stainless steel |
| Application | мембран, гидропоники, осмоса, промывки, горячей воды, котла, форсунки, фонтана, парового котла, водоподготовки, каустика, теплиц, водоснабжения, аэропоники, мойки, орошения, водоочистки, alkalis, повышения давления, water |
| Analogue for | Calpeda MXV, Grundfos CR, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM |

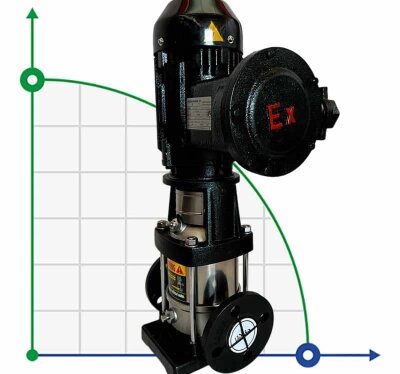

Download instructions, catalog for Multistage pump BVS 2-15, 1,5kW, AISI 304, Ex explosion-proof
