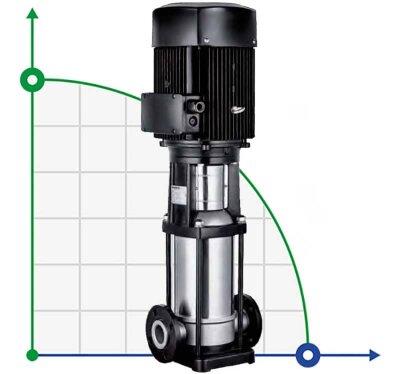

Multistage pump for boiler BVS 32-20-2, 3 kW, AISI 304

Click image for a larger view

More +1

Code: 1046411

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	29
PumpType	multi-stage
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	77
Max.flow rate, m3/h	40
Explosion protection	No
Pump capacity, m3/h	40
Serial number of the pump	BVS
Drive Type	electric
Feed height, m	29
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Length of transport packing, cm	35
Width of transport packing, cm	36
Height of transport packing, cm	94
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	32
Nom.head, m	20
Impeller material	AISI 304 stainless steel
Transport packing volume, cbm	0,118
Analogue for	Ebara EVMS, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Speroni RVM, Calpeda MXV, Grundfos CR, Dab KVC

Show all features (34)

Documentation

Description Multistage pump for boiler BVS 32-20-2, 3 kW, AISI 304

Багатоступінчасті насоси BVS з нержавіючої сталі AISI 304 підходять для систем промислової обробки, систем мийки та очищення, перекачування кислот і лугів, фільтрації, підвищення тиску, очищення води, кондиціонування, зрошення, систем протипожежного захисту.

Category: Multistage Pumps

Features Multistage pump for boiler BVS 32-20-2, 3 kW, AISI 304

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	29
PumpType	multi-stage
Output pipe diameter	DN65
Input pipe diameter	DN65
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Weight, kg	77
Max.flow rate, m3/h	40
Explosion protection	No
Pump capacity, m3/h	40
Serial number of the pump	BVS
Drive Type	electric
Feed height, m	29
Country of Origin	China
Warranty, months	12
Power capacity, kW	3
Length of transport packing, cm	35
Width of transport packing, cm	36
Height of transport packing, cm	94
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 304 stainless steel
Seal	Mechanical Seal
Type of configuration	with engine
Installation Type	vertical
Nom.flow rate, m3/h	32
Nom.head, m	20
Impeller material	AISI 304 stainless steel
Transport packing volume, cbm	0,118
Analogue for	Ebara EVMS, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Speroni RVM, Calpeda MXV, Grundfos CR, Dab KVC
