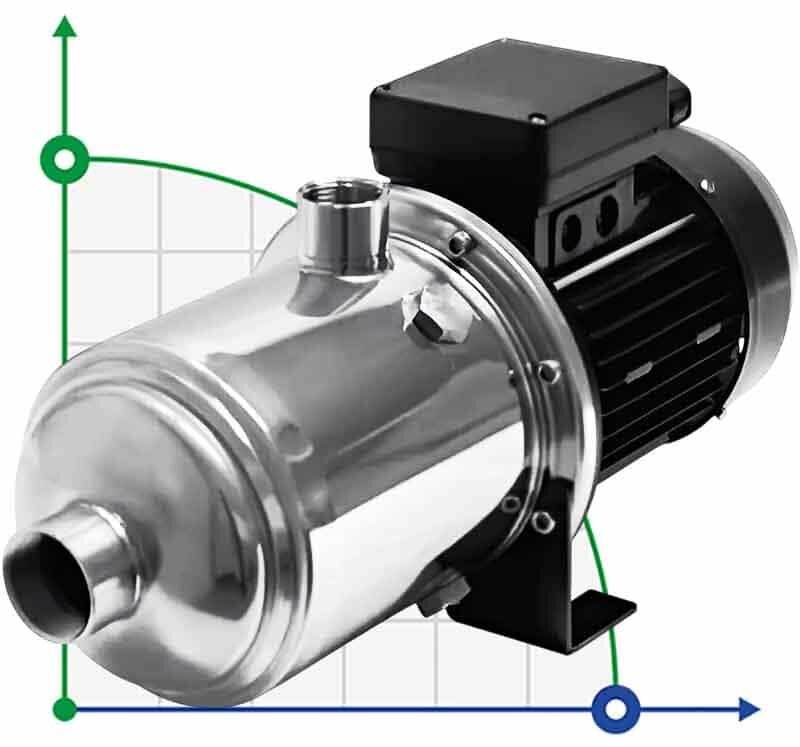

Horizontal multistage pump for refrigeration systems EHX 20/5, 5.5 kW, 30 m3/h, 79m, 380V/T, AISI 304 (EBARA MATRIX)

Code: 1051201
(0 review)
ProducerST Pompe
MaterialAISI 304 stainless steel
Max. head, m79
PumpTypemulti-stage
Output pipe diameter1 1/2"
Input pipe diameter2"
Max.temperature, C110
Weight, kg53
Max.flow rate, m3/h30
Explosion protectionNo
Suction capacity (NPSH), m7
Pump capacity, cu.m/hour30
Serial number of the pumpEHX
Drive Typeelectric
Feed height, m79
Country of OriginItaly
Power capacity, kW5,5
Length of transport packing, cm700
Width of transport packing, cm280
Height of transport packing, cm230
Power supply3х380 V, 50 Hz
Rate of turn, rpm3 000
ProtectionIP55
Housing materialAISI 304 stainless steel
SealMechanical Seal, CAR/CER/EPDM
Shaft materialAISI 304 stainless steel
Type of configurationwith engine
Installation Typehorizontal
Impeller materialAISI 304 stainless steel
Pressure, bar10
Analogue forLowara HM, Pentax ULTRA, Ebara MATRIX
Show all features (31)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$2,115.65 (netto)
Добавить в сравнение
We deliver anywhere in the world
Horizontal multistage pumps of the EHX series, made entirely of stainless steel, are suitable for domestic, agricultural and industrial applications. All parts in contact with the pumped liquid are made of AISI 304 stainless steel to ensure maximum hygiene and corrosion resistance. Pump housing, impeller, diffusers, shaft: AISI 304 stainless steel. Mechanical seal: Car/Cer/EPDM. Bracket and motor housing: aluminium.
ProducerST Pompe
MaterialAISI 304 stainless steel
Max. head, m79
PumpTypemulti-stage
Output pipe diameter1 1/2"
Input pipe diameter2"
Max.temperature, C110
Weight, kg53
Max.flow rate, m3/h30
Explosion protectionNo
Suction capacity (NPSH), m7
Pump capacity, cu.m/hour30
Serial number of the pumpEHX
Drive Typeelectric
Feed height, m79
Country of OriginItaly
Power capacity, kW5,5
Length of transport packing, cm700
Width of transport packing, cm280
Height of transport packing, cm230
Power supply3х380 V, 50 Hz
Rate of turn, rpm3 000
ProtectionIP55
Housing materialAISI 304 stainless steel
SealMechanical Seal, CAR/CER/EPDM
Shaft materialAISI 304 stainless steel
Type of configurationwith engine
Installation Typehorizontal
Impeller materialAISI 304 stainless steel
Pressure, bar10
Analogue forLowara HM, Pentax ULTRA, Ebara MATRIX

Download instructions, catalog for Horizontal multistage pump for refrigeration systems EHX 20/5, 5.5 kW, 30 m3/h, 79m, 380V/T, AISI 304 (EBARA MATRIX)
