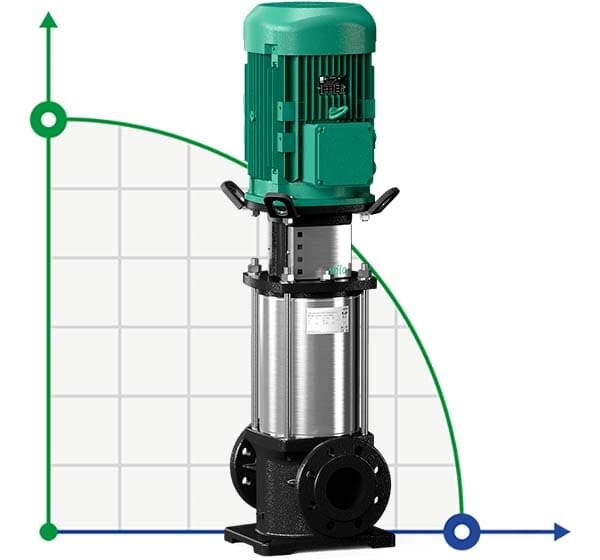

WILO HELIX FIRST V608-5/16/E/S/400-50 multi-staged pump

Click image for a larger view

Code: 4201143

Producer	Wilo
Max. head, m	70
PumpType	multi-stage
Output pipe diameter	G 1¼
Input pipe diameter	G 1¼
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	10
Pump capacity, cu.m/hour	10
Serial number of the pump	Helix
Drive Type	electric
Feed height, m	70
Country of Origin	Germany
Power supply	3х380 V, 50 Hz
Nom.pressure, Mpa	1,6
Type of configuration	with engine
Installation Type	vertical
Application	гидропоники, водоснабжения, водоочистки, каустика, водоподготовки, парового котла, фонтана, форсунки, котла, горячей воды, промывки, осмоса, мембран, теплиц, аэропоники, мойки, орошения, alkalis, повышения давления, water

Show all features (18)

Description WILO HELIX FIRST V608-5/16/E/S/400-50 multi-staged pump

Multistage centrifugal pump WILO HELIX of vertical design and line connection. This pump is distinguished by highly compacted design. The pump shaft and the IEC motor shaft are connected to each other by a longitudinal-roll coupling. The separate rolling bearing of the connecting element guarantees optimum absorption of axial forces. Applications: water supply and pressure boosting, industrial circulation plants, process water, closed cooling circuits, fire extinguishing systems, washing plants
