The pump is multistage in the stainless steel case of EL.SPER. RSX 4-4 (0.75 KW) special.

The pump is multistage in the stainless steel case of EL.SPER. RSX 4-4 (0.75 KW) special.

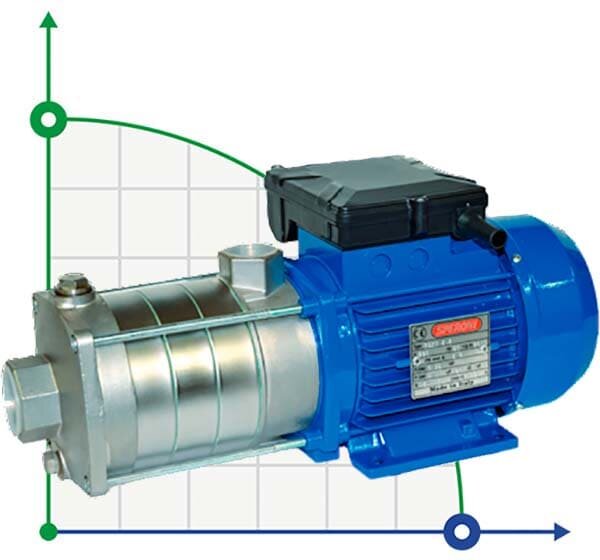

Click image for a larger view

Code: 102207840

Producer	Speroni
Max. head, m	38
PumpType	console
Output pipe diameter	G 1"
Input pipe diameter	G 1 1/4"
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	110
Weight, kg	11
Max.flow rate, m3/h	9.6
Explosion protection	No
Pump capacity, m3/h	4.8
Serial number of the pump	RSX
Drive Type	electric
Feed height, m	29
Country of Origin	Italy
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Nom.pressure, Mpa	1
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	4.8
Nom.head, m	29
Impeller material	AISI 304 stainless steel

Show all features (24)

Description The pump is multistage in the stainless steel case of EL.SPER. RSX 4-4 (0.75 KW) special.

Horizontal multi-stage stainless steel pumps Speroni RSX/RSXM series are designed, with a number of working wheels, successively installed one by one in stainless steel leather, move the pressure from stage to stage. The pumps have good hydraulic characteristics and high productivity. The temperature is up to 35°C. appointments for long-term work.

Category: Multistage Pumps

Features The pump is multistage in the stainless steel case of EL.SPER. RSX 4-4 (0.75 KW) special.

Producer	Speroni
Max. head, m	38
PumpType	console
Output pipe diameter	G 1"
Input pipe diameter	G 1 1/4"
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	110
Weight, kg	11
Max.flow rate, m3/h	9.6
Explosion protection	No
Pump capacity, m3/h	4.8
Serial number of the pump	RSX
Drive Type	electric
Feed height, m	29
Country of Origin	Italy
Power capacity, kW	0,75
Power supply	3х380 V, 50 Hz
Rate of turn, rpm	2 900
Nom.pressure, Mpa	1
Type of configuration	with engine
Installation Type	horizontal
Nom.flow rate, m3/h	4.8
Nom.head, m	29
Impeller material	AISI 304 stainless steel
