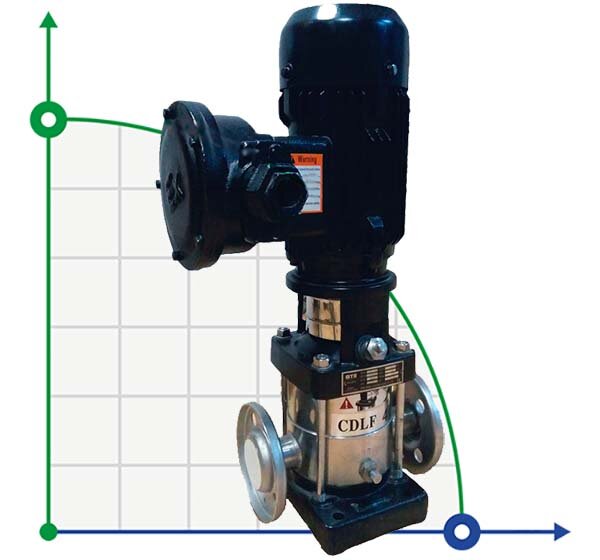

Multistage pump CDLF 150-20-1, AISI 316, Ex

Click image for a larger view

Code: 1028748

(0 review)

Producer	BTS Engineering
Material	AISI 316 stainless steel
Max. head, m	44.3
PumpType	multi-stage
Output pipe diameter	DN125
Input pipe diameter	DN125
Material of flow channel	AISI 316 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	180
Explosion protection	Yes
Pump capacity, m3/h	180
Availability of spare parts	Yes
Serial number of the pump	CDLF
Drive Type	electric
Feed height, m	44.3
Country of Origin	China
Warranty, months	12
Power capacity, kW	22
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 316 stainless steel
Installation Type	vertical
Application	гидропоники, теплиц, мембран, осмоса, промывки, горячей воды, котла, форсунки, фонтана, аэропоники, водоподготовки, водоочистки, водоснабжения, орошения, каустика, мойки, парового котла, alkalis, повышения давления, water
Analogue for	Ebara EVMS, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Speroni RVM, Grundfos CR

Show all features (24)

Documentation

Description Multistage pump CDLF 150-20-1, AISI 316, Ex

Stainless steel CDLF Series multi-stage pumps. Robust, quiet and easy to operate pumps are applied at municipal, industrial and agricultural facilities, namely in systems of fire-extinguishing, water treatment, irrigation, hot and cold water supply, in heating systems, cooling and air conditioning systems. CDLF pumps in ATEX design are widely applied in food industry, alcohol industry in particular (for pumping of alcohol-containing liquids)

Category: Multistage Pumps

Features Multistage pump CDLF 150-20-1, AISI 316, Ex

Producer	BTS Engineering
Material	AISI 316 stainless steel
Max. head, m	44.3
PumpType	multi-stage
Output pipe diameter	DN125
Input pipe diameter	DN125
Material of flow channel	AISI 316 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	180
Explosion protection	Yes
Pump capacity, m3/h	180
Availability of spare parts	Yes
Serial number of the pump	CDLF
Drive Type	electric
Feed height, m	44.3
Country of Origin	China
Warranty, months	12
Power capacity, kW	22
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 316 stainless steel
Installation Type	vertical
Application	гидропоники, теплиц, мембран, осмоса, промывки, горячей воды, котла, форсунки, фонтана, аэропоники, водоподготовки, водоочистки, водоснабжения, орошения, каустика, мойки, парового котла, alkalis, повышения давления, water
Analogue for	Ebara EVMS, Calpeda MXV, Dab KVC, Aquatica LVR, Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Speroni RVM, Grundfos CR
