Multistage pump CDLF 200-40, AISI 304, Ex

Product list

Home
Pumps
Multistage Pumps
Multistage pump CDLF 200-40, AISI 304, Ex

Multistage pump CDLF 200-40, AISI 304, Ex

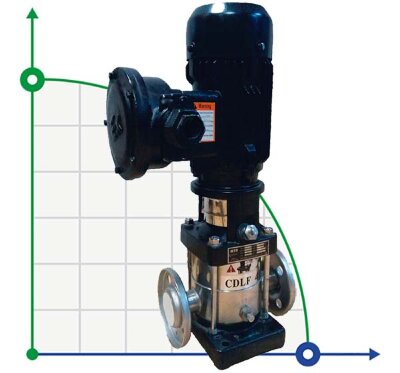

Click image for a larger view

Code: 1028854

(0 review)

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	157.5
PumpType	multi-stage
Output pipe diameter	DN150
Input pipe diameter	DN150
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	240
Explosion protection	Yes
Pump capacity, cu.m/hour	240
Availability of spare parts	Yes
Serial number of the pump	CDLF
Drive Type	electric
Feed height, m	157.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	110
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 304 stainless steel
Installation Type	vertical
Application	осмоса, мембран, промывки, горячей воды, котла, форсунки, фонтана, парового котла, водоподготовки, каустика, водоочистки, водоснабжения, гидропоники, мойки, орошения, аэропоники, теплиц, alkalis, повышения давления, water
Analogue for	Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM, Grundfos CR, Dab KVC, Aquatica LVR, Calpeda MXV

Show all features (24)

Documentation

Description Multistage pump CDLF 200-40, AISI 304, Ex

Stainless steel CDLF Series multi-stage pumps. Robust, quiet and easy to operate pumps are applied at municipal, industrial and agricultural facilities, namely in systems of fire-extinguishing, water treatment, irrigation, hot and cold water supply, in heating systems, cooling and air conditioning systems. CDLF pumps in ATEX design are widely applied in food industry, alcohol industry in particular (for pumping of alcohol-containing liquids)

Category: Multistage Pumps

Features Multistage pump CDLF 200-40, AISI 304, Ex

Producer	BTS Engineering
Material	AISI 304 stainless steel
Max. head, m	157.5
PumpType	multi-stage
Output pipe diameter	DN150
Input pipe diameter	DN150
Material of flow channel	AISI 304 stainless steel
Max.temperature, C	120
Max.flow rate, m3/h	240
Explosion protection	Yes
Pump capacity, cu.m/hour	240
Availability of spare parts	Yes
Serial number of the pump	CDLF
Drive Type	electric
Feed height, m	157.5
Country of Origin	China
Warranty, months	12
Power capacity, kW	110
Rate of turn, rpm	2 900
Protection	IP55
Housing material	AISI 304 stainless steel
Installation Type	vertical
Application	осмоса, мембран, промывки, горячей воды, котла, форсунки, фонтана, парового котла, водоподготовки, каустика, водоочистки, водоснабжения, гидропоники, мойки, орошения, аэропоники, теплиц, alkalis, повышения давления, water
Analogue for	Lowara SV, VMtec PRIMA VMEV, Varna, EBARA EVM, EBARA EVMW, Ebara EVMS, Speroni RVM, Grundfos CR, Dab KVC, Aquatica LVR, Calpeda MXV
