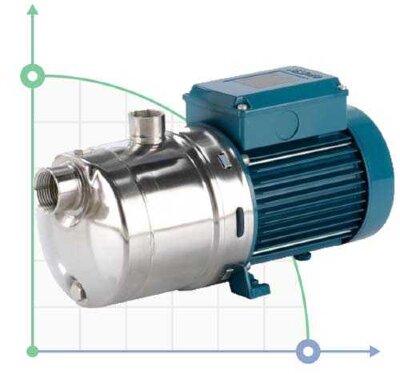

Horizontal multi-stage pump MXHM 204/A

Application: water supply, pumping of clean liquids that do not contain abrasive impurities and are not aggressive for stainless steel (pumps with a seal made of special materials are available on request). Universal pump, used in everyday life, in industry, in garden plots and for irrigation. Monoblock horizontal multistage pumps made of chrome-nickel steel. Compact and robust design, without protruding flanges and with a monolithic connection between the pump and the motor with support legs. The pump body is monolithic, open only on one side (drum type), the front suction bell is located above the pump shaft and the radial feed bell is located at the top. Filling and draining plugs on the middle line, accessible from either side (as a clamping box). Liquid temperature from -15°C to +110°C. The ambient temperature is not more than 40°C. Maximum permissible final pressure in the pump body: 8 bar. Continuous operation mode.
