Producer | Ferroni |
Material | cast iron |
PumpType | powered by a PTO |
Output pipe diameter | 30 mm |
Input pipe diameter | 30 mm |
Weight, kg | 10 |
Max.flow rate, m3/h | 10.8 |
Pump capacity, m3/h | 10.8 |
Availability of spare parts | Yes |
Drive Type | mechanical from PTO |
Country of Origin | Italy |
Warranty, months | 12 |
Power capacity, kW | 4 |
Dimensions, mm | 180 x 220 x 190 |
Pressure, bar | 25 |
Max.dry suction head, m | 6 |
The capacity of the shaft, k.s. | 5,5 |
The rotary speed of PTO, rpm | 700 |
Quantity of splines | 6x29x35 |
Analogue for | Yuzuak Sprinklers Irrigation, GPA, Svahen, ОМЗ Пинск, Rovatti, CAPRARI, FAMOS, Varisco, Kömag, Comet, BBA pumps, GEA |
Producer | Ferroni |
Material | cast iron |
PumpType | powered by a PTO |
Output pipe diameter | 30 mm |
Input pipe diameter | 30 mm |
Weight, kg | 10 |
Max.flow rate, m3/h | 10.8 |
Pump capacity, m3/h | 10.8 |
Availability of spare parts | Yes |
Drive Type | mechanical from PTO |
Country of Origin | Italy |
Warranty, months | 12 |
Power capacity, kW | 4 |
Dimensions, mm | 180 x 220 x 190 |
Pressure, bar | 25 |
Max.dry suction head, m | 6 |
The capacity of the shaft, k.s. | 5,5 |
The rotary speed of PTO, rpm | 700 |
Quantity of splines | 6x29x35 |
Analogue for | Yuzuak Sprinklers Irrigation, GPA, Svahen, ОМЗ Пинск, Rovatti, CAPRARI, FAMOS, Varisco, Kömag, Comet, BBA pumps, GEA |

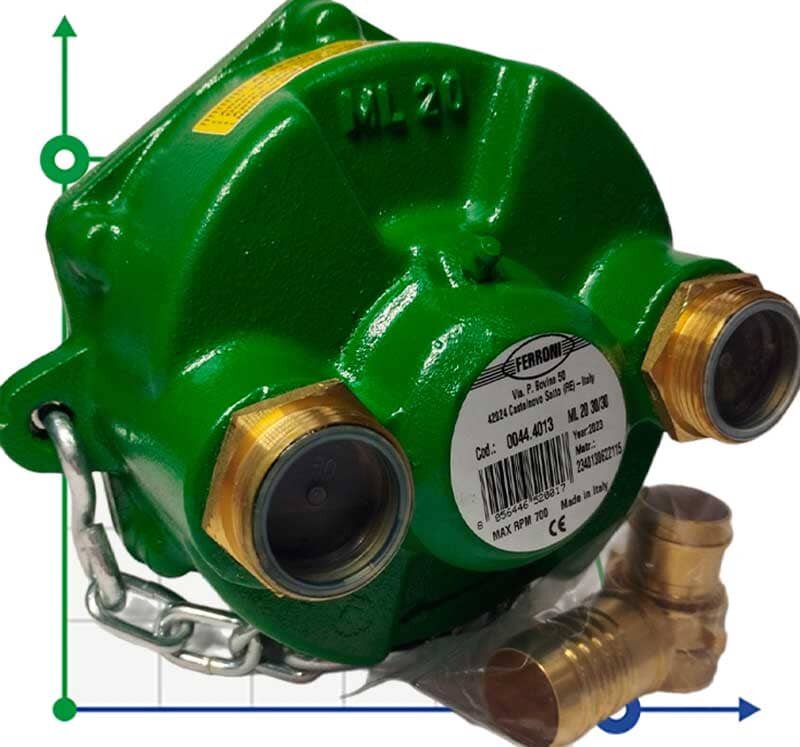

Download instructions, catalog for ML 20 30/30 PTO roller pump
