Pump driven by PTO tractor Rovatti MB25-TW R.3,14

Code: 80415605
(0 review)
ProducerROVATTI
Materialcast iron
Max. head, m18.3
PumpTypepowered by a PTO
Output pipe diameter250
Input pipe diameter250
Material of flow channelcast iron
Max.flow rate, m3/h1020
Pump capacity, cu.m/hour1020
Serial number of the pumpMB
Drive Typemechanical from PTO
Feed height, m18.3
Country of OriginItaly
Warranty, months12
The capacity of the shaft, k.s.50,7
The rotary speed of PTO, rpm510
Tractor power min, hp55,8
Applicationраспыления жидких удобрений, пожаротушения, наполнения емкостей, наполнения водоёмов, полива
Analogue forGPA, Svahen, ОМЗ Пинск, CAPRARI, FAMOS, Varisco, Kömag, Comet, BBA pumps, Yuzuak Sprinklers Irrigation, Ekler, GEA
Show all features (19)
Ukraine: Pre-order only
Poland: Pre-order only
Germany: Pre-order only
Italy: Pre-order only
$10,658.77 (netto)
Добавить в сравнение
We deliver anywhere in the world

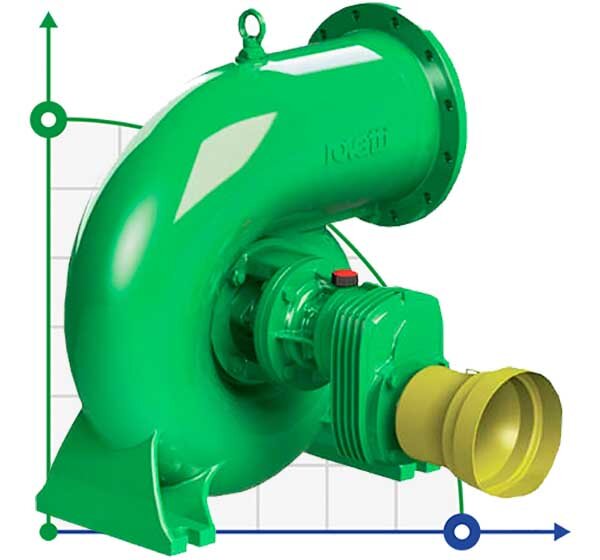

Rovatti MB25-TW R pump.3,14 is a single-stage cantilever pump driven by a tractor PTO. The pump impeller is mounted on a high-speed shaft of a single-stage multiplier, which transforms relatively low PTO speeds into working revolutions of the impeller. The pump of this type is designed to supply a large volume of water. It can be successfully used for filling rice checks, pumping pits, pumping reservoirs, and quickly filling large-volume containers. The pump capacity is up to 1000 cubic meters per hour at a pressure of 1.2-1.8 ATM. (12-18 m of water.art.). The PTO speed is no more than 540 rpm.. Optimal fuel consumption is achieved at a power take-off shaft speed of 510 rpm.
Category: PTO Driven Pump
ProducerROVATTI
Materialcast iron
Max. head, m18.3
PumpTypepowered by a PTO
Output pipe diameter250
Input pipe diameter250
Material of flow channelcast iron
Max.flow rate, m3/h1020
Pump capacity, cu.m/hour1020
Serial number of the pumpMB
Drive Typemechanical from PTO
Feed height, m18.3
Country of OriginItaly
Warranty, months12
The capacity of the shaft, k.s.50,7
The rotary speed of PTO, rpm510
Tractor power min, hp55,8
Applicationраспыления жидких удобрений, пожаротушения, наполнения емкостей, наполнения водоёмов, полива
Analogue forGPA, Svahen, ОМЗ Пинск, CAPRARI, FAMOS, Varisco, Kömag, Comet, BBA pumps, Yuzuak Sprinklers Irrigation, Ekler, GEA
