| Producer | AlphaDynamic |
| Material | AISI 316 stainless steel |
| Max. head, m | 120 |
| PumpType | screw type |
| Output pipe diameter | G 1/2" |
| Input pipe diameter | G 1/2" |
| Max.temperature, C | 100 |
| Max.flow rate, m3/h | 0.045 |
| Explosion protection | No |
| Pump capacity, m3/h | 0.045 |
| Serial number of the pump | ATLAS DOS |
| Drive Type | electric |
| Feed height, m | 120 |
| Country of Origin | Greece |
| Power capacity, kW | 0,25 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 400 |
| Housing material | AISI 316 stainless steel |
| Flow rate, l/h | 45 |
| Installation Type | horizontal |
| Pressure, bar | 4 |
| Rotor material | AISI 316 stainless steel |
| Stator material | VITON |
| Screw speed, rpm | 250 |

    | Producer | AlphaDynamic |
| Material | AISI 316 stainless steel |
| Max. head, m | 120 |
| PumpType | screw type |
| Output pipe diameter | G 1/2" |
| Input pipe diameter | G 1/2" |
| Max.temperature, C | 100 |
| Max.flow rate, m3/h | 0.045 |
| Explosion protection | No |
| Pump capacity, m3/h | 0.045 |
| Serial number of the pump | ATLAS DOS |
| Drive Type | electric |
| Feed height, m | 120 |
| Country of Origin | Greece |
| Power capacity, kW | 0,25 |
| Power supply | 3х380 V, 50 Hz |
| Rate of turn, rpm | 1 400 |
| Housing material | AISI 316 stainless steel |
| Flow rate, l/h | 45 |
| Installation Type | horizontal |
| Pressure, bar | 4 |
| Rotor material | AISI 316 stainless steel |
| Stator material | VITON |
| Screw speed, rpm | 250 |

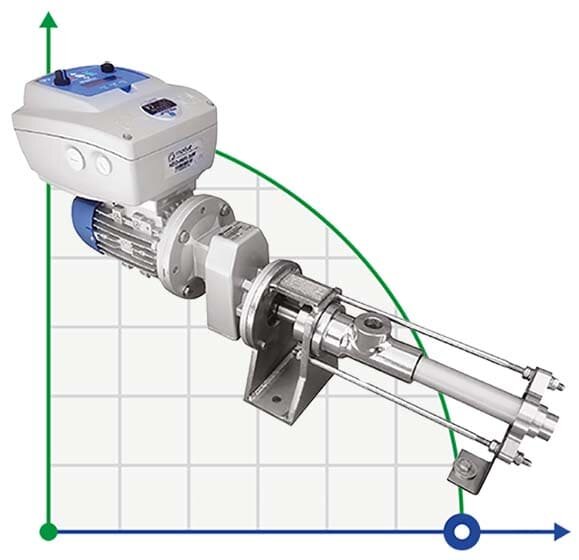

Download instructions, catalog for Wastewater treatment pump ATLAS DOS 11.2-01-0.35HP-5.47-1400-63-A-VITON
